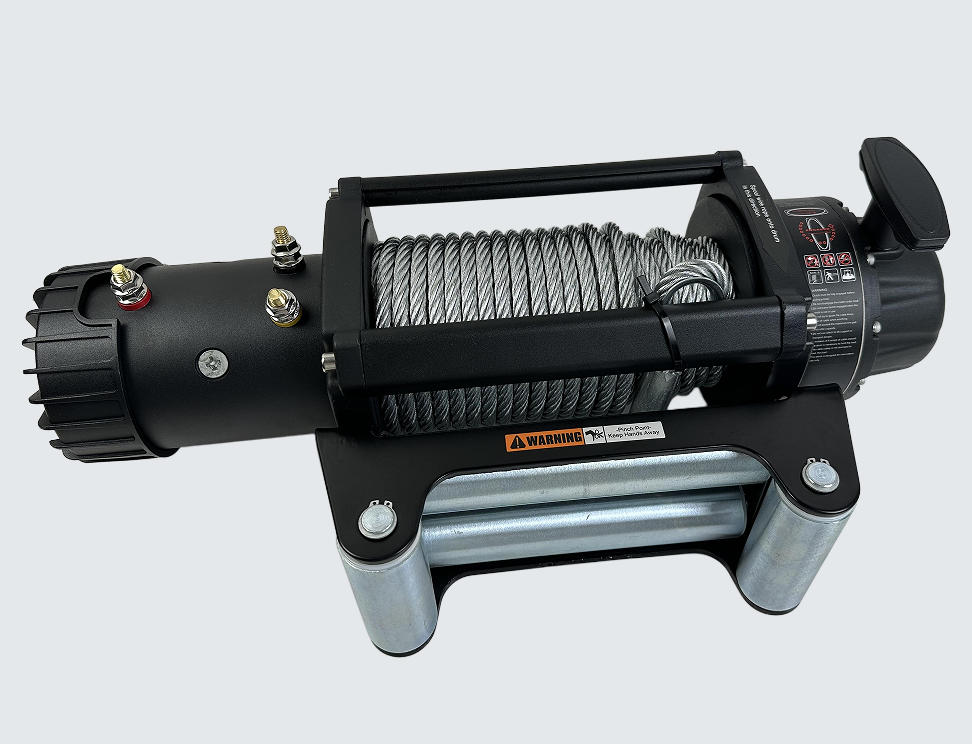

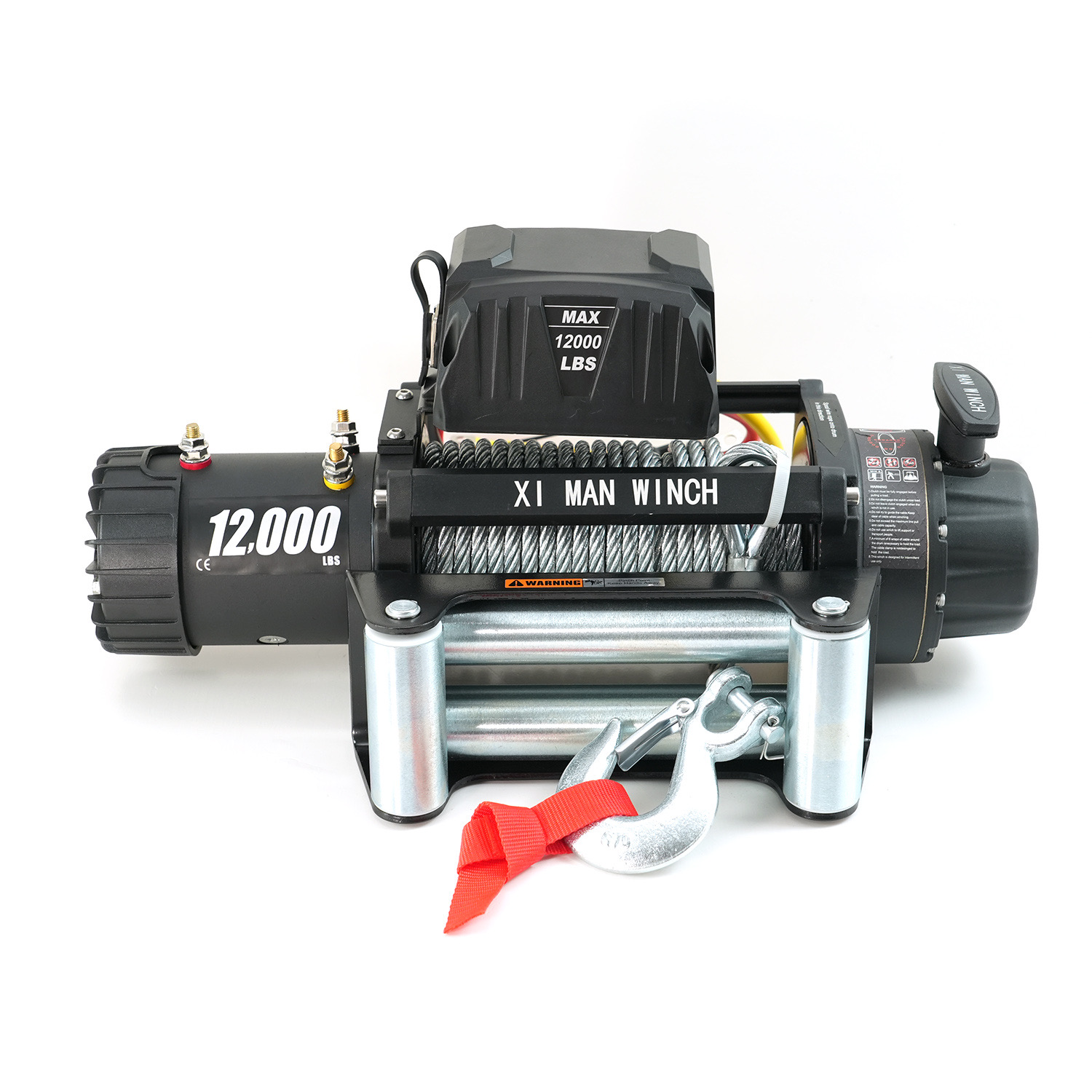

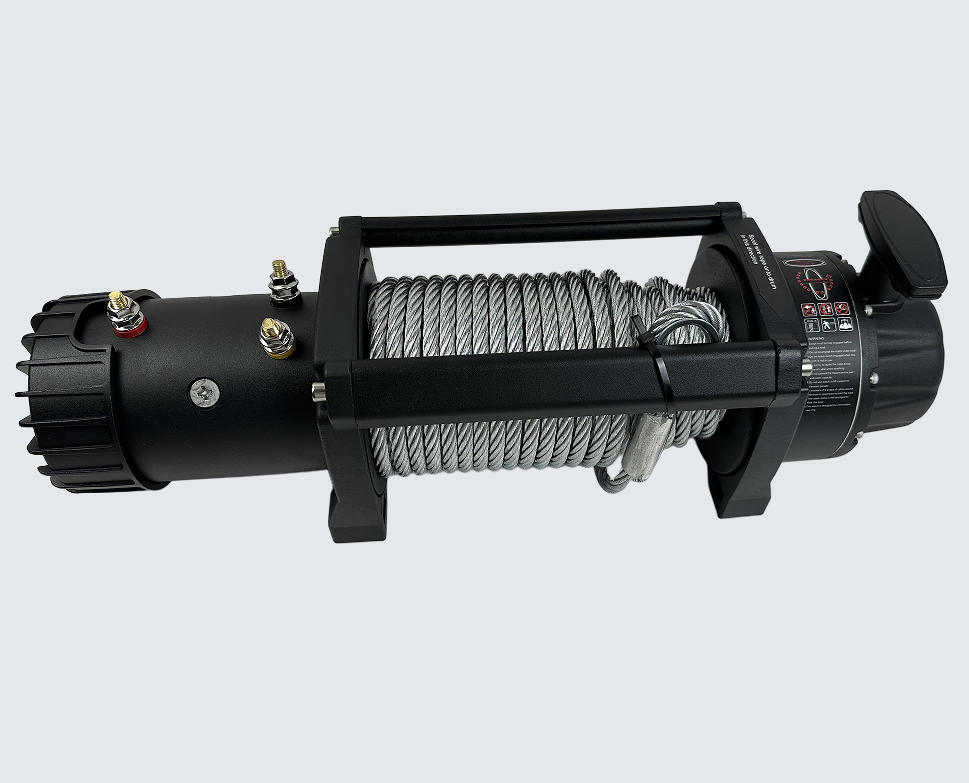

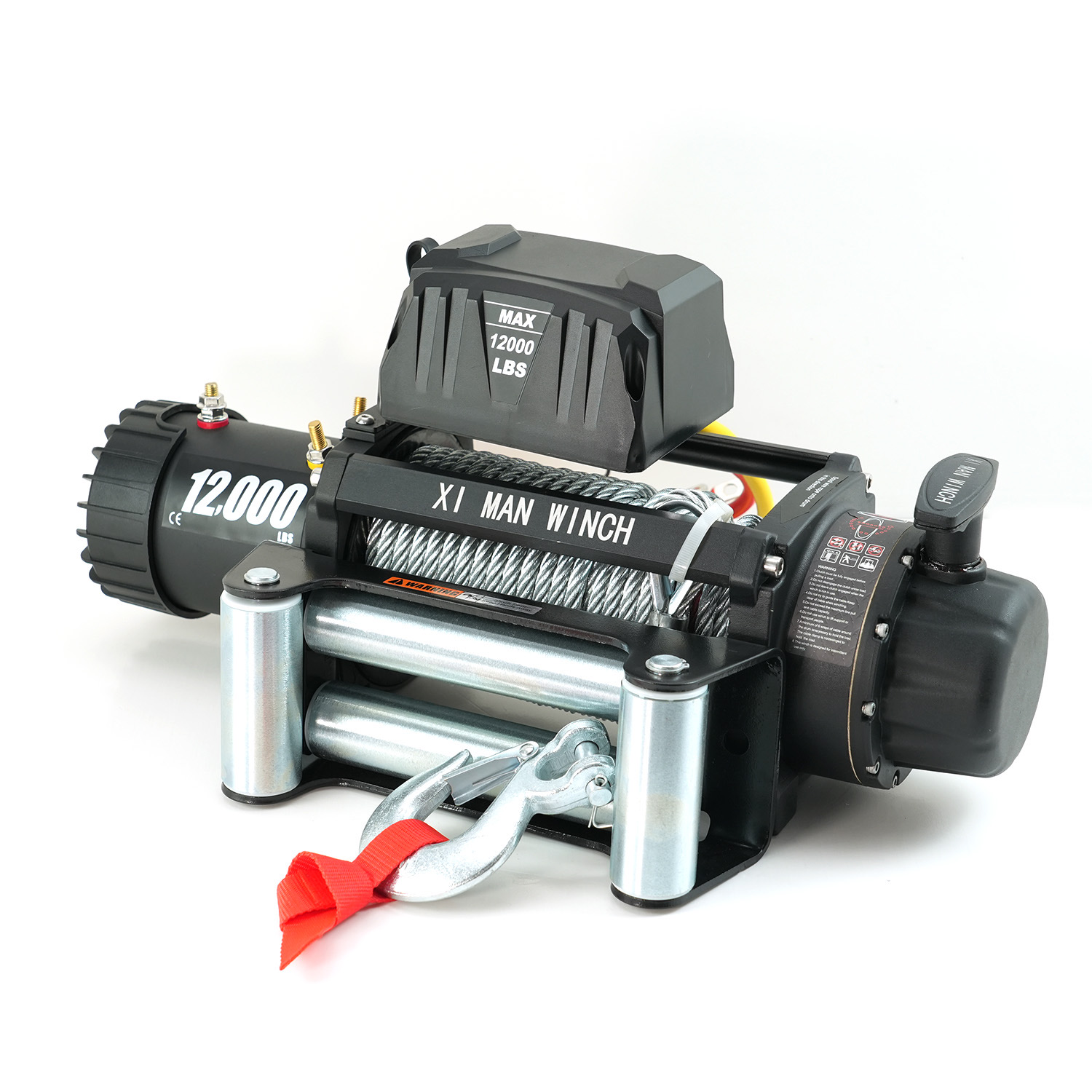

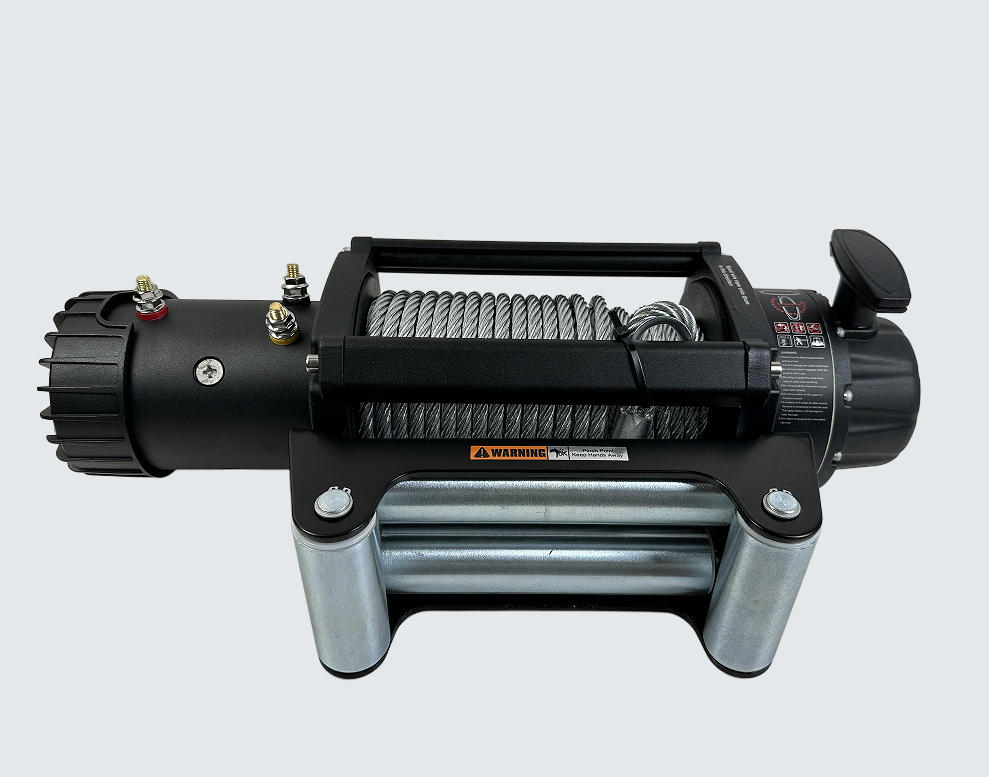

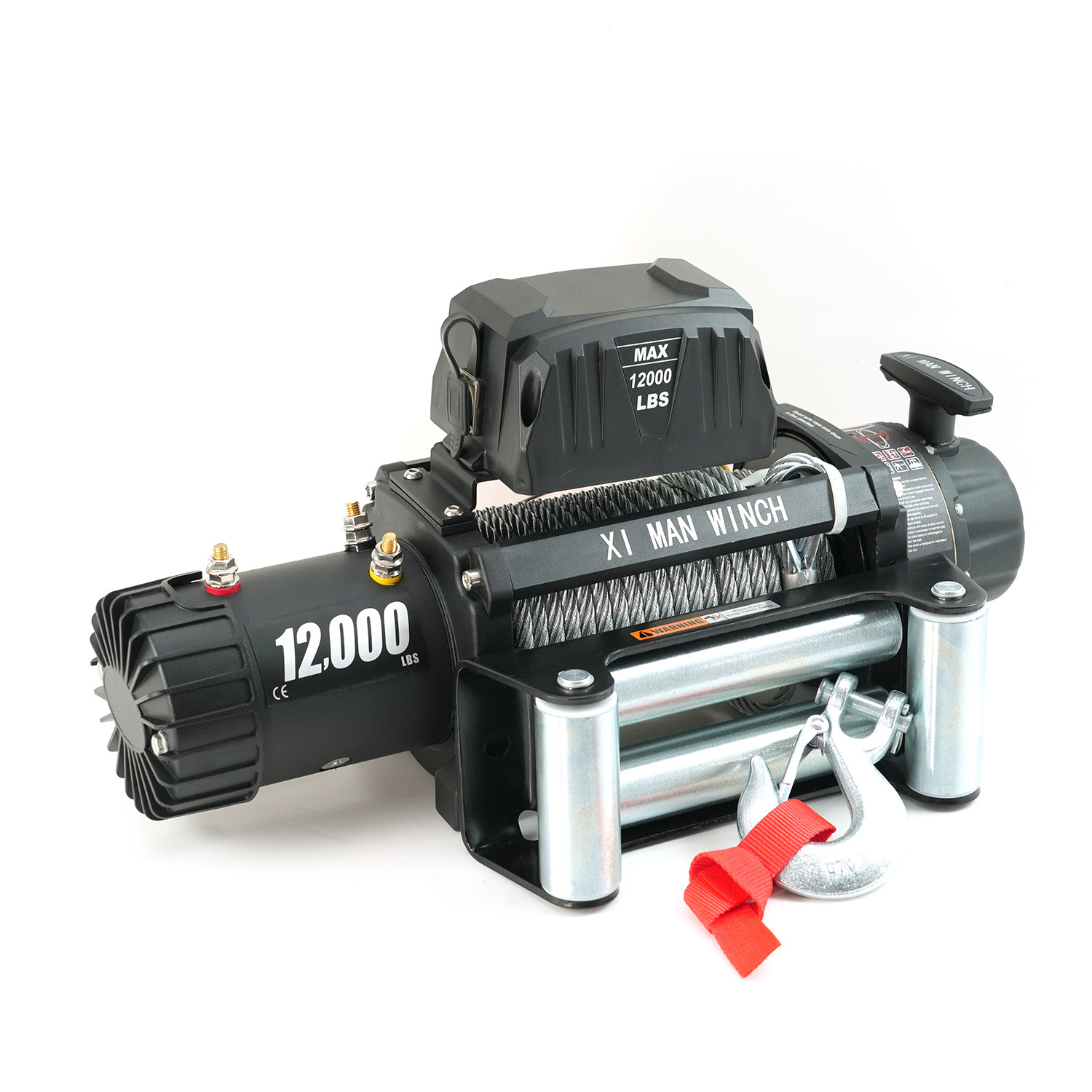

IP68 Powerful Popular Design Electric Winch 12000lbs
IP68 Powerful Popular Design Electric Winch 12000lbs
Compact and popular designed winch model. High quality with the most attractive price
This 4x4 truck winch designs to customers who love off road driving . There are optional ways for control box to be installed like Pre-set solenoid control box seated on the motor, or above the winch drum or vehicle bullbars.... , Sliding ring gear for freespooling by handle-turn ,three gears drive train with 216: 1 gear reduction ration .Appropriate speed line with safe operation .Both wired cord remote and wireless remote control. 4-way roller fairlead .Reliable performance and durable make your driving happily . The economic price is more advantage that you choose it !
Features and Specifications :
Part Number : XM-12000SP-F
| Single line rated pull | 12000lbs(5436kgs) |
| Motor | 6.0hp/4.5kw,series wound sealed |
| Control | Wired remote and Wireless remote controls |
| Gear train | 3 stage planetary Sealed All steel gears |
| Gear reduction ratio | 216:1 |
| Braking | Automatic load-holding brake |
| Drum size | Diameter 2.5"(63.5mm)×length9.6"(224mm) |
| Cable | 9.5mm × 24.5 steel wire |
| Remote control switch | Included |
| Extra wireless remote | Included |
| Battery | Recommended:650CCA |
| Net weight | 36.5 kgs |
| Overall dimension (length×width×height) | 21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm) |
| Mounting bolt pattern | 10"×4.5"(254×114.3mm) |
Line Pull And Cable Capacity
Line Speed And Amp Draw ( First Layer )
