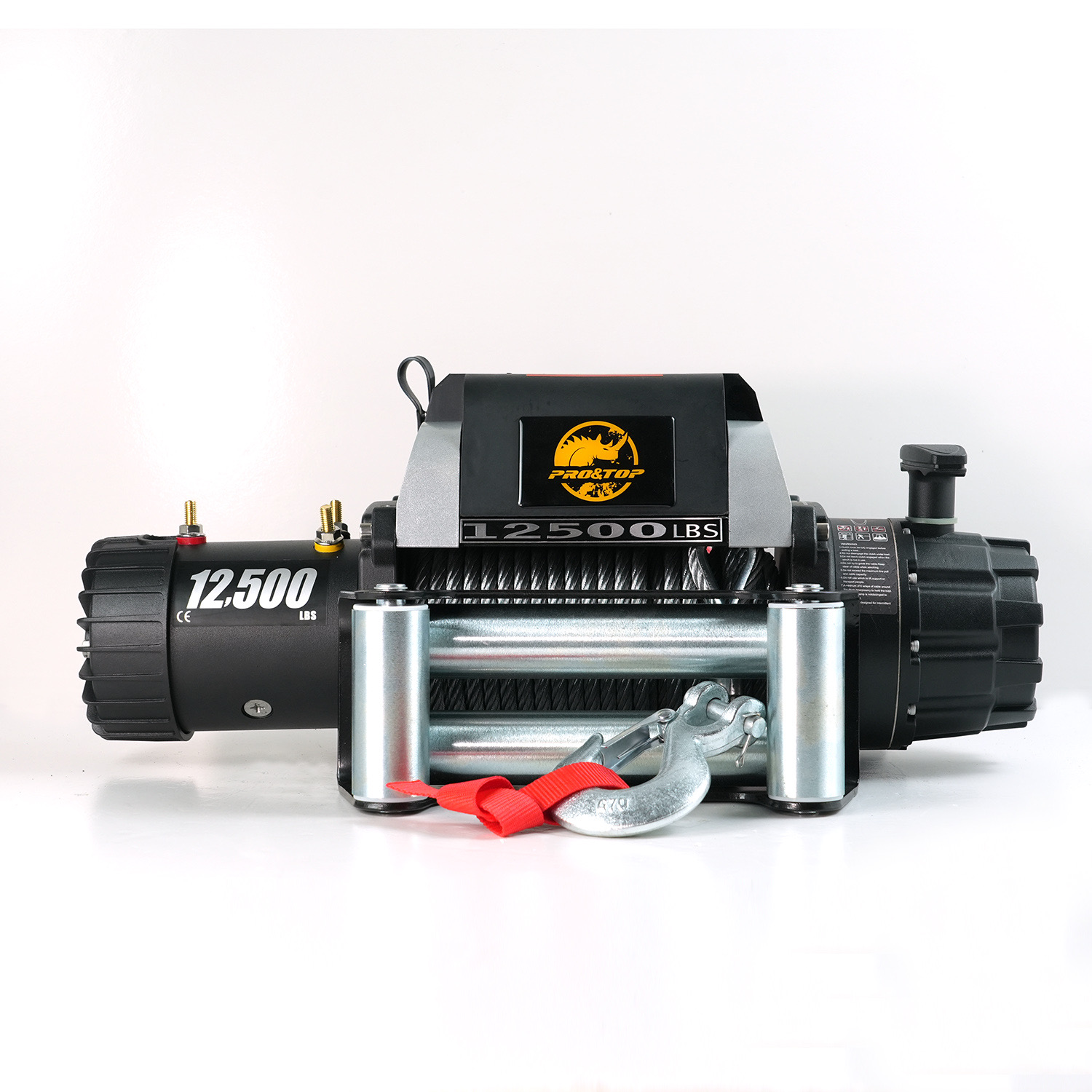

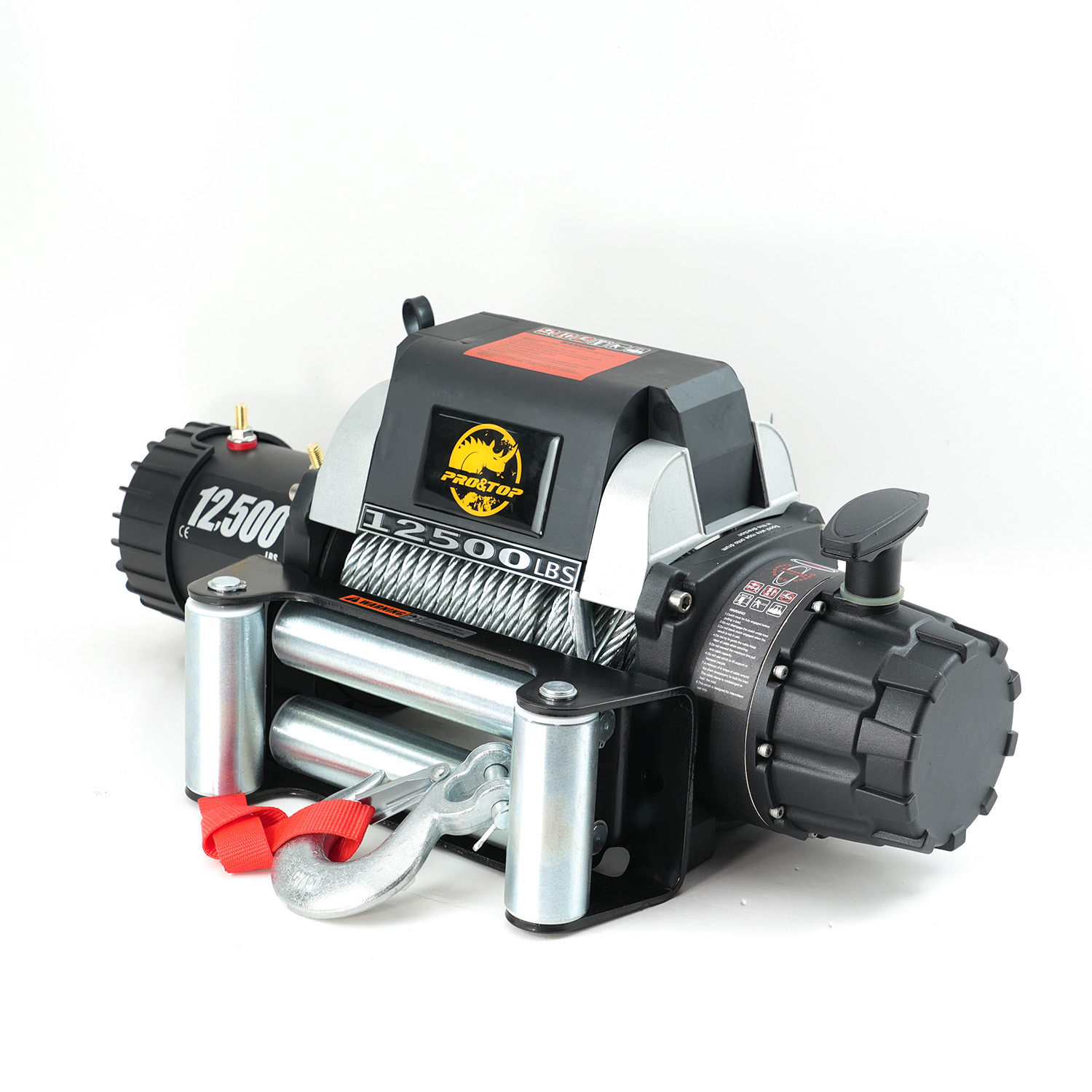

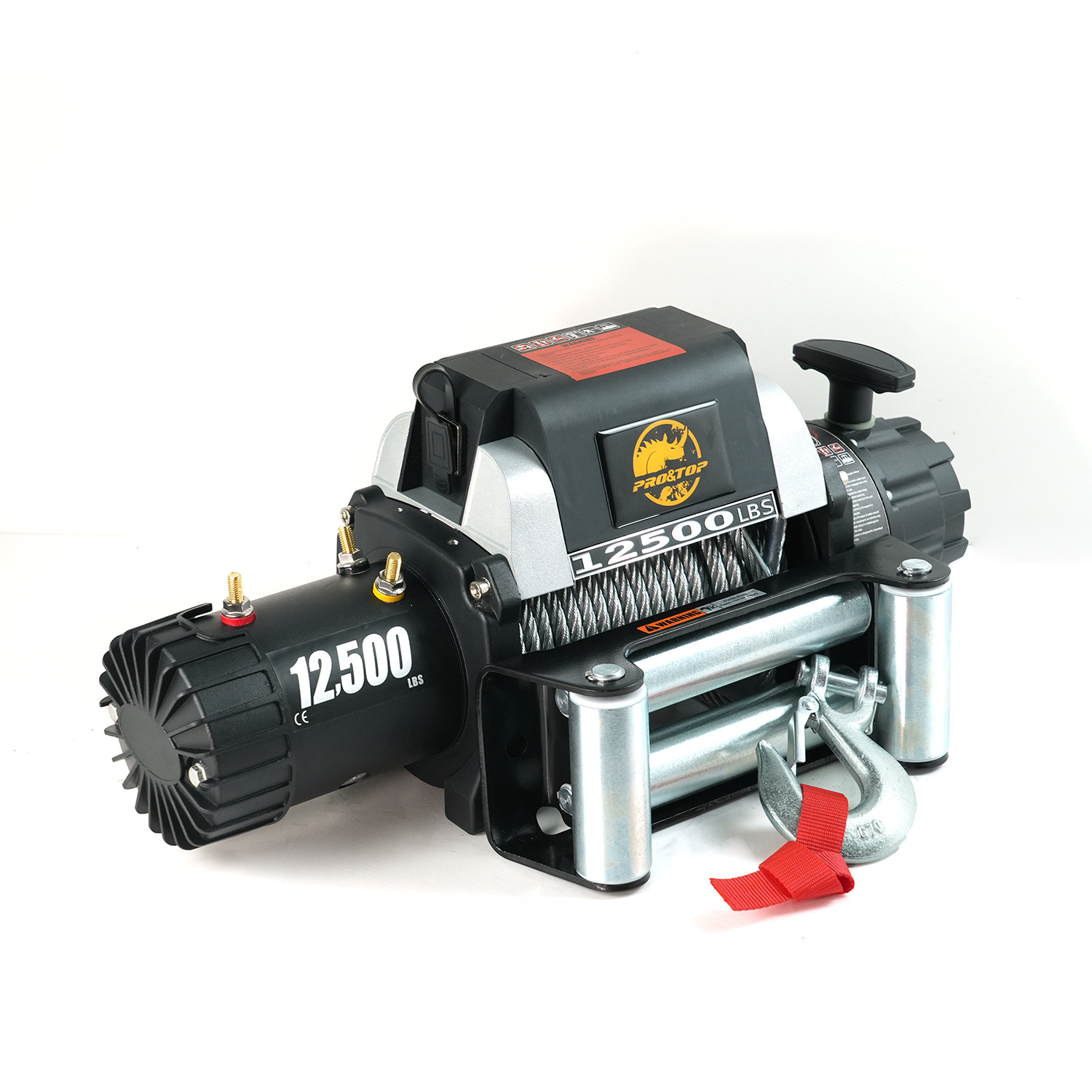

Waterproof Powerful 4X4 Truck Electric Winch 12500lbs Steel Cable

Completed design, Fast speed with powerful pulling.Waterproof ,reliable and durable quality , Ideal recovery winch for 4x4 off-road drivers!

IP68 ultimate performance winch for 4x4 off road riders .
New unique surface -look & symmetrical design ,All aluminum cover for the latest winch model with all waterproof .Fast speed & high torque & big horsepower series -wound motor sealed  . a big excellent-perfomance plastic control box design  .All steel gears with 1.5 modular ,three gear-carriages driventrain  with Gear ratio of 243: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature "Engage "and "Disengage" clutch run smoothly and quietly
High quality of  450 Amperes solenoid with waterproof ,1.8m- long battery leads with 100% pure copper wires inside.  3.7 meter long wired remote control and 25 meter radio-distance wireless remote controls as well. 3/8 forged winch hook with a strap. 9.5 x 24.5 m galvanized steel wire cable & 4 -way roller fairlead. Box-protection packing to make a winch safe and no damages during shipment. It's worth having it for off road lovers! For more details, please contact us at any time.  Thanks
12500lbs Features and Specifications

Part Number : XM-12500NF

Single line rated pull12500lbs(5663kgs)
Motor6.6hp/5.0kw,series wound sealed
ControlWired remote  and Wireless remote controls
Gear train3 stage planetary Sealed  All steel gears
Gear reduction ratio243:1
BrakingAutomatic load-holding brake
Drum size Diameter 2.5"(63.5mm)×length9.6"(224mm)
Cable9.5mm × 24.5 steel wire
Remote control switchIncluded
Extra wireless remoteIncluded
BatteryRecommended:650CCA
Net weight38 kgs
Overall dimension
(length×width×height)		18.5"×5.25" ×9.23"(564×160×281.4mm)
Mounting bolt pattern10"×4.5"(254×114.3mm)

Pull, speed, amps

Line pull lbs(kgs)Line speed ft/min(m/min)Current (Amps)
0905.5(5.22)60
2000(907)171(4.34)115
4000(1818)122.1(3.1)170
6000(2727)105.6(2.68)215
8000(3636)90.5(2.3)280
10000(4545)63(1.6)320
12500(5663)53(1.34)410

Line pull and rope capacity in each layer

LayerRated line pull lbs(kgs)Total rope on drum ft(M)
112500(5663)16.3(5.0)
29210(4186)37(11.2)
38030(3642)61(18.6)
46894(3127)79(24.0)
