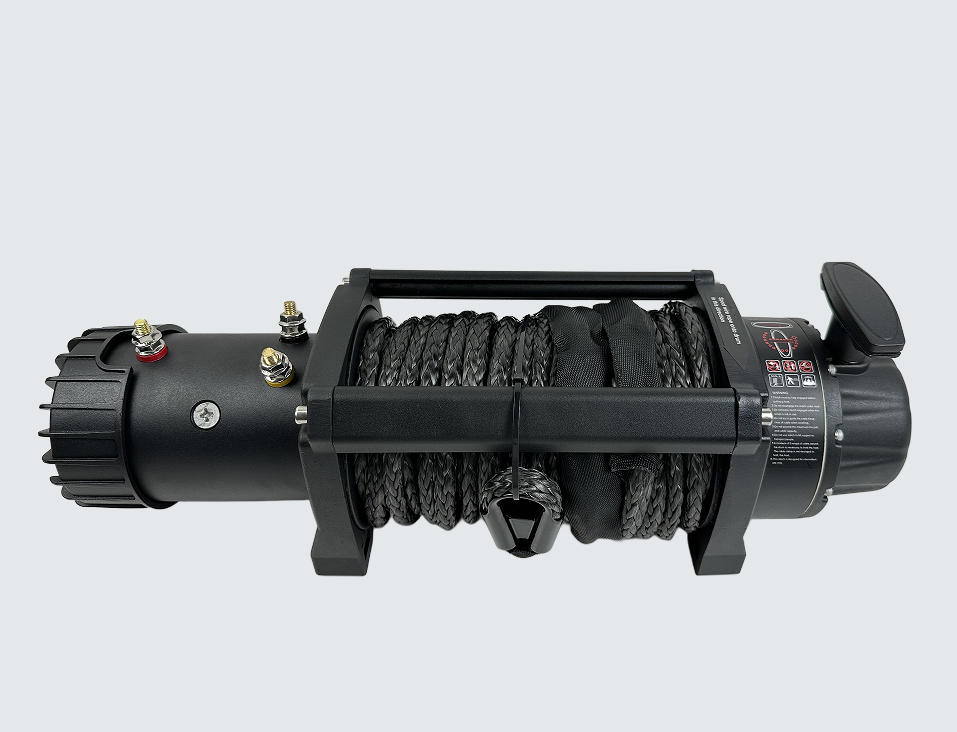

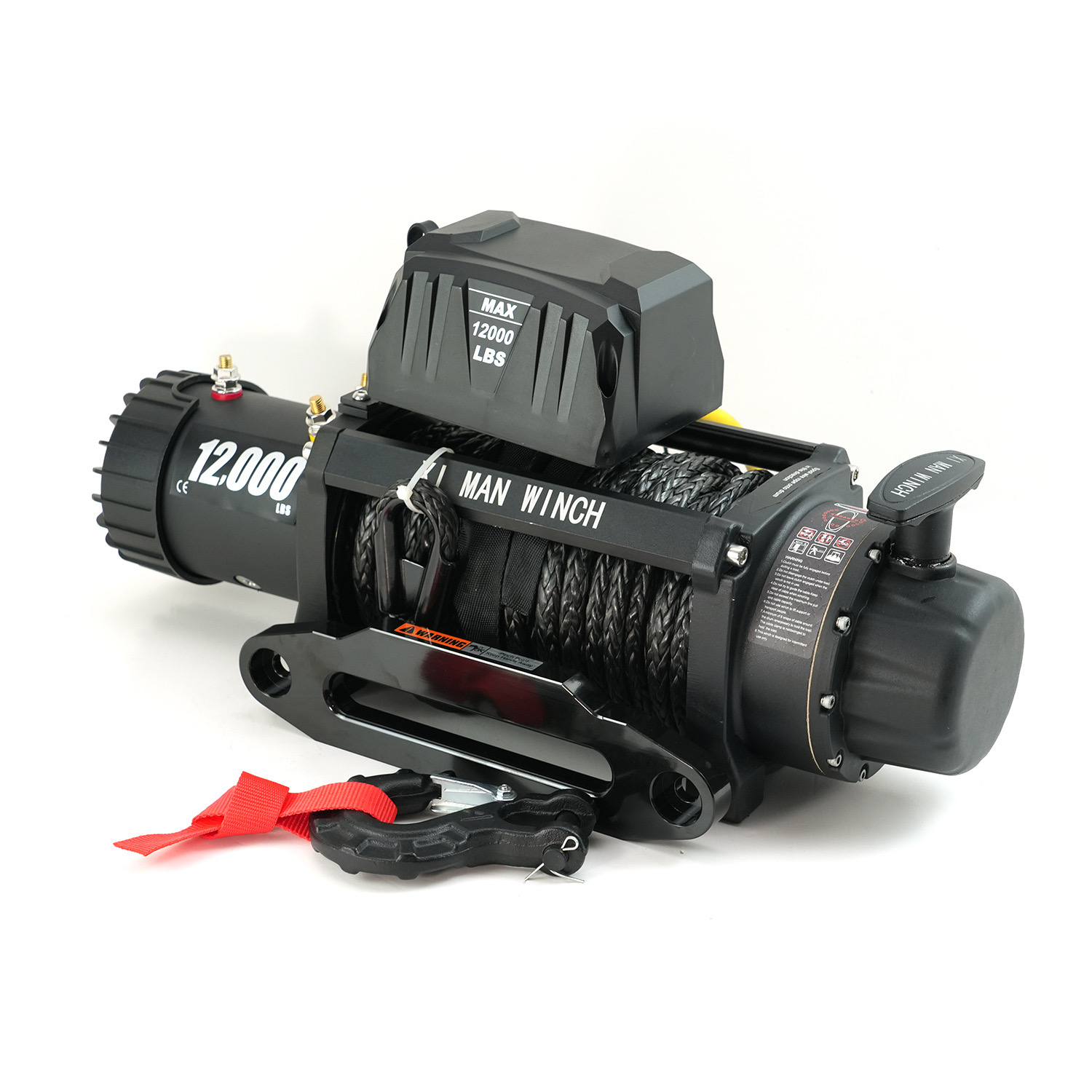

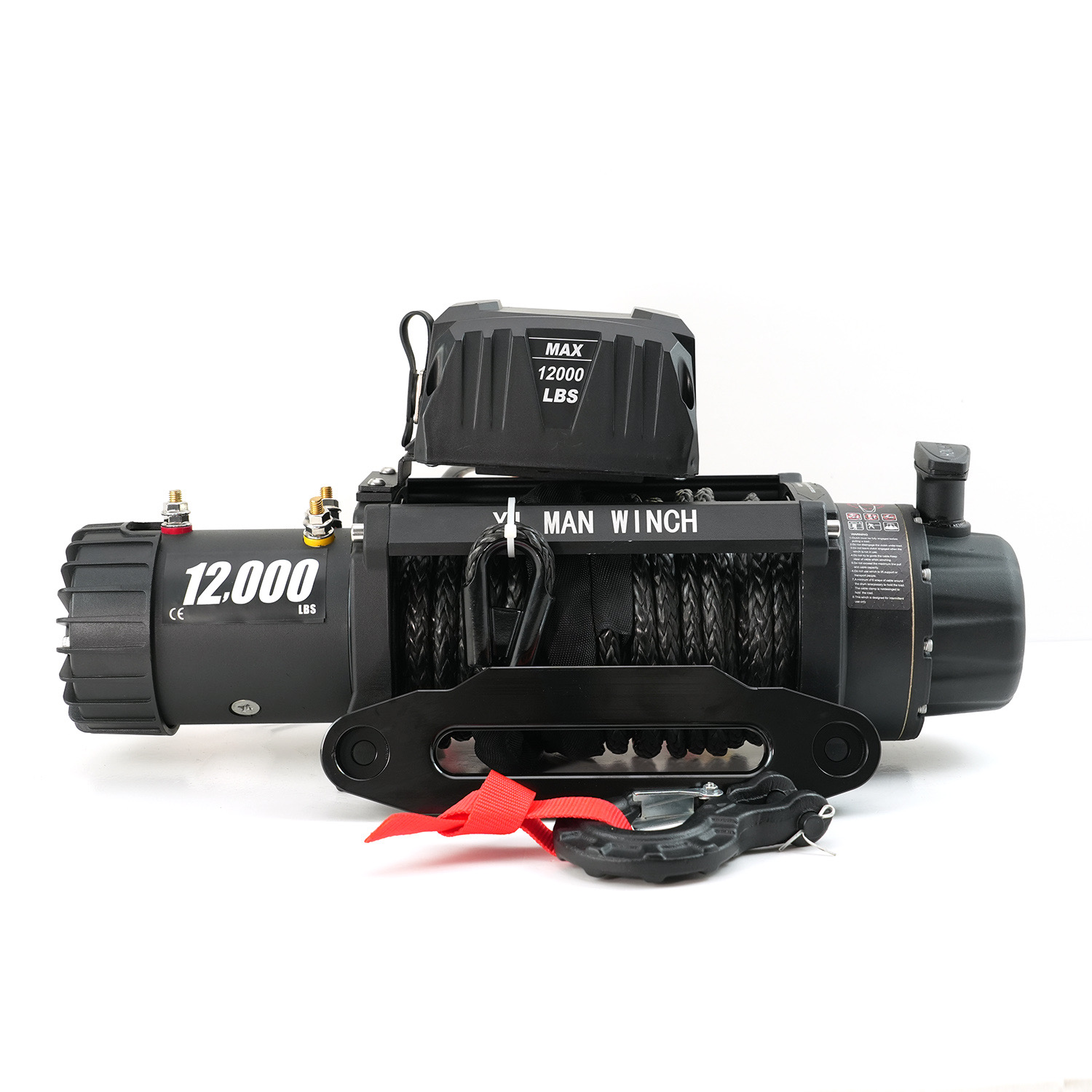

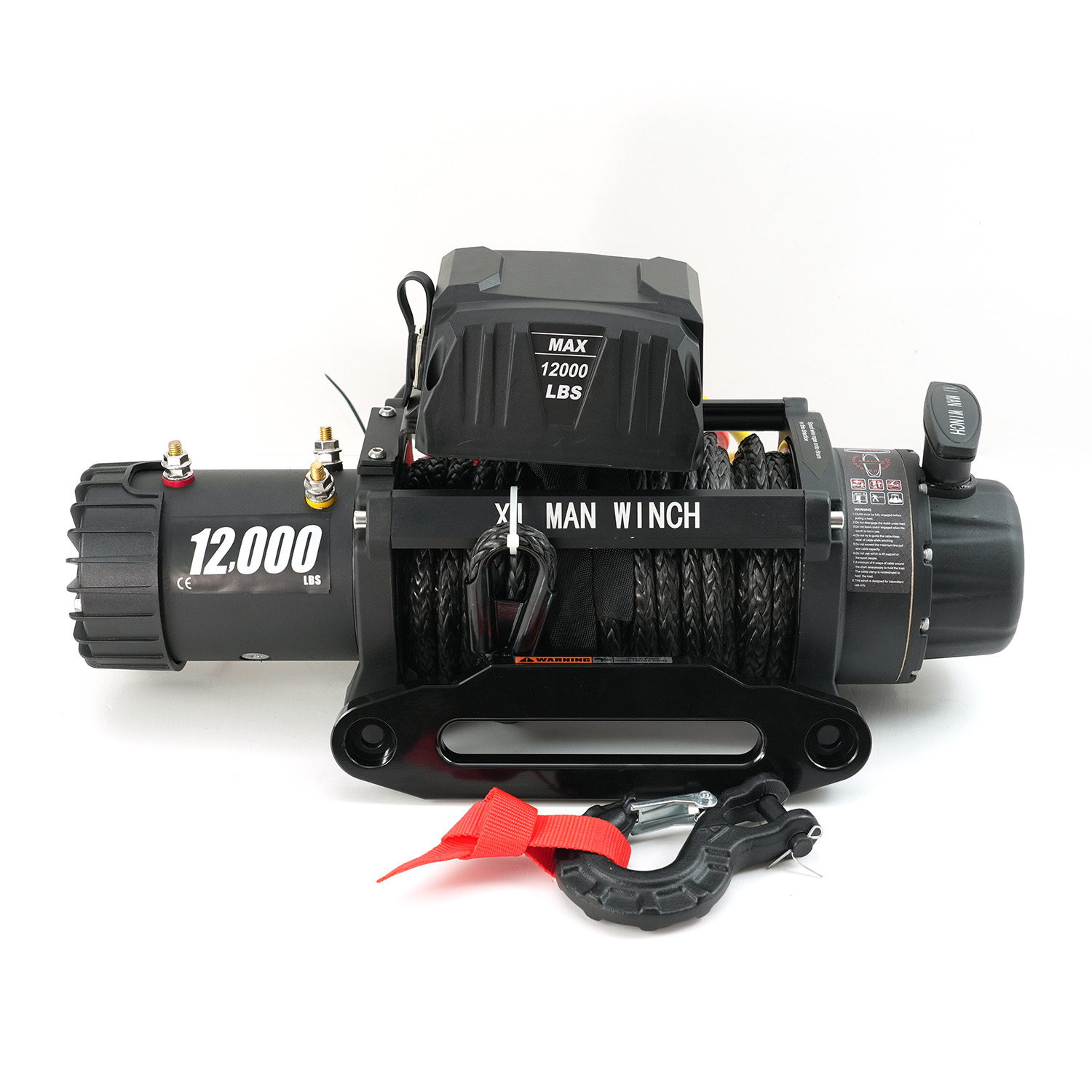

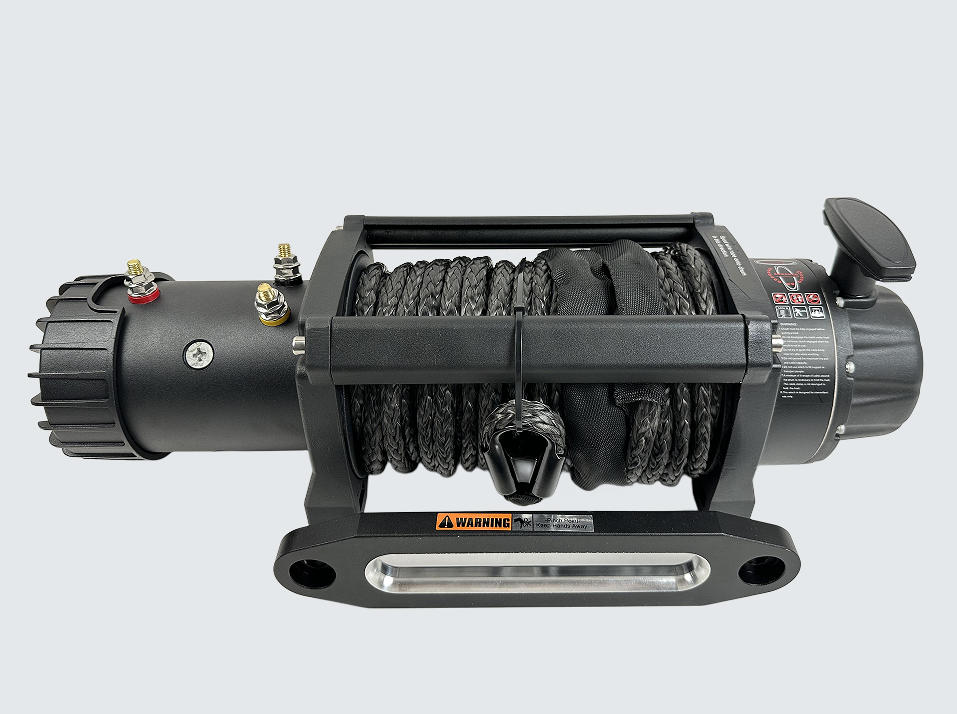

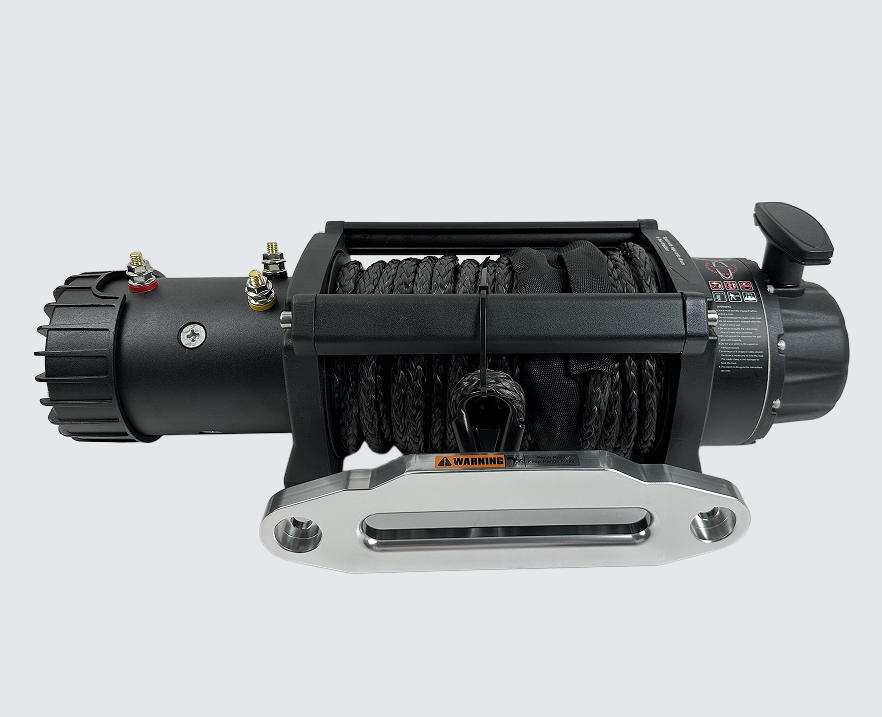

IP68 Powerful Pulling Truck Winch 12000lbs
IP68 Powerful Pulling Truck Winch 12000lbs
This 4x4 truck winch designs to customers who love off road driving.Classic and compact design , Power solenoid control box can be installed flexibly like seated on the motor , Center above winch drum or other places. Sliding ring gear for freespooling by handle-turn ,three gears drive train with 216: 1 gear reduction ration .Appropriate speed line with safe operation .Both wired cord remote and wireless remote control. 4-way roller fairlead .Reliable performance and durable make your driving happily . The economic price is more advantage that you choose it ! Surely, Color for rope and various design of wireless transimitter are available! For more details, please contact us!
Features and Specifications :
Part Number: XM-12000SP-SF
| Single line rated pull | 12000lbs(5436kgs) |
| Motor | 6.0hp/4.5kw,series wound sealed |
| Control | Wired remote and Wireless remote controls |
| Gear train | 3 stage planetary Sealed All steel gears |
| Gear reduction ratio | 216:1 |
| Braking | Automatic load-holding brake |
| Drum size | Diameter 2.5"(63.5mm)×length9.6"(224mm) |
| Cable | 9.5mm × 25 synthetic rope |
| Remote control switch | Included |
| Extra wireless remote | Included |
| Battery | Recommended:650CCA |
| Net weight | 28 kg |
| Overall dimension (length×width×height) | 21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm) |
| Mounting bolt pattern | 10"×4.5"(254×114.3mm) |
Line Speed And Amp Draw ( First Layer )
Line Pull And Cable Capacity
