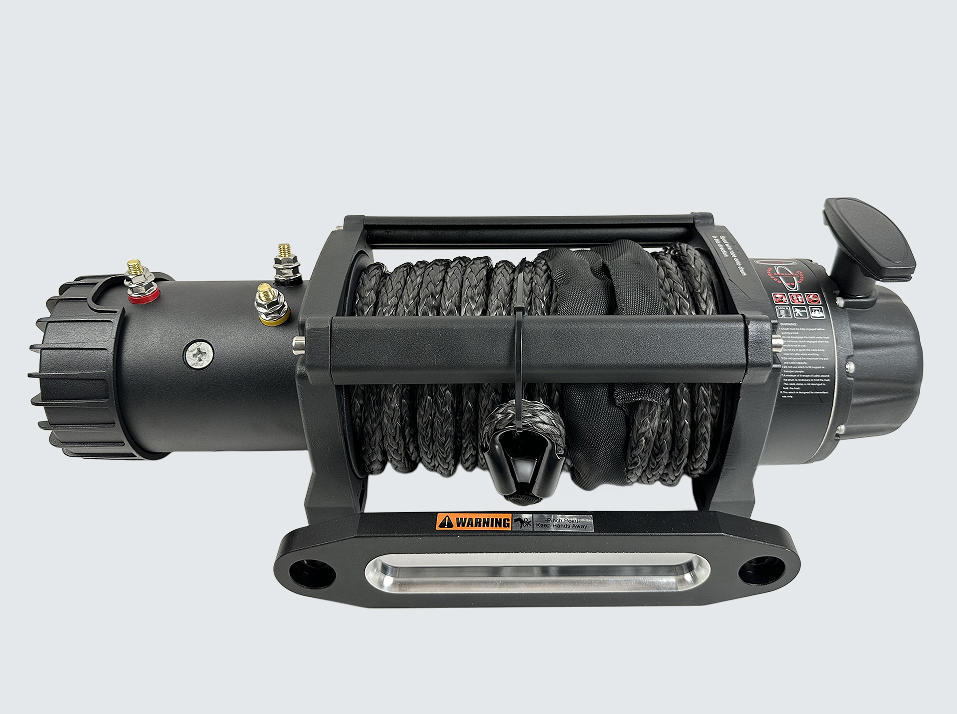

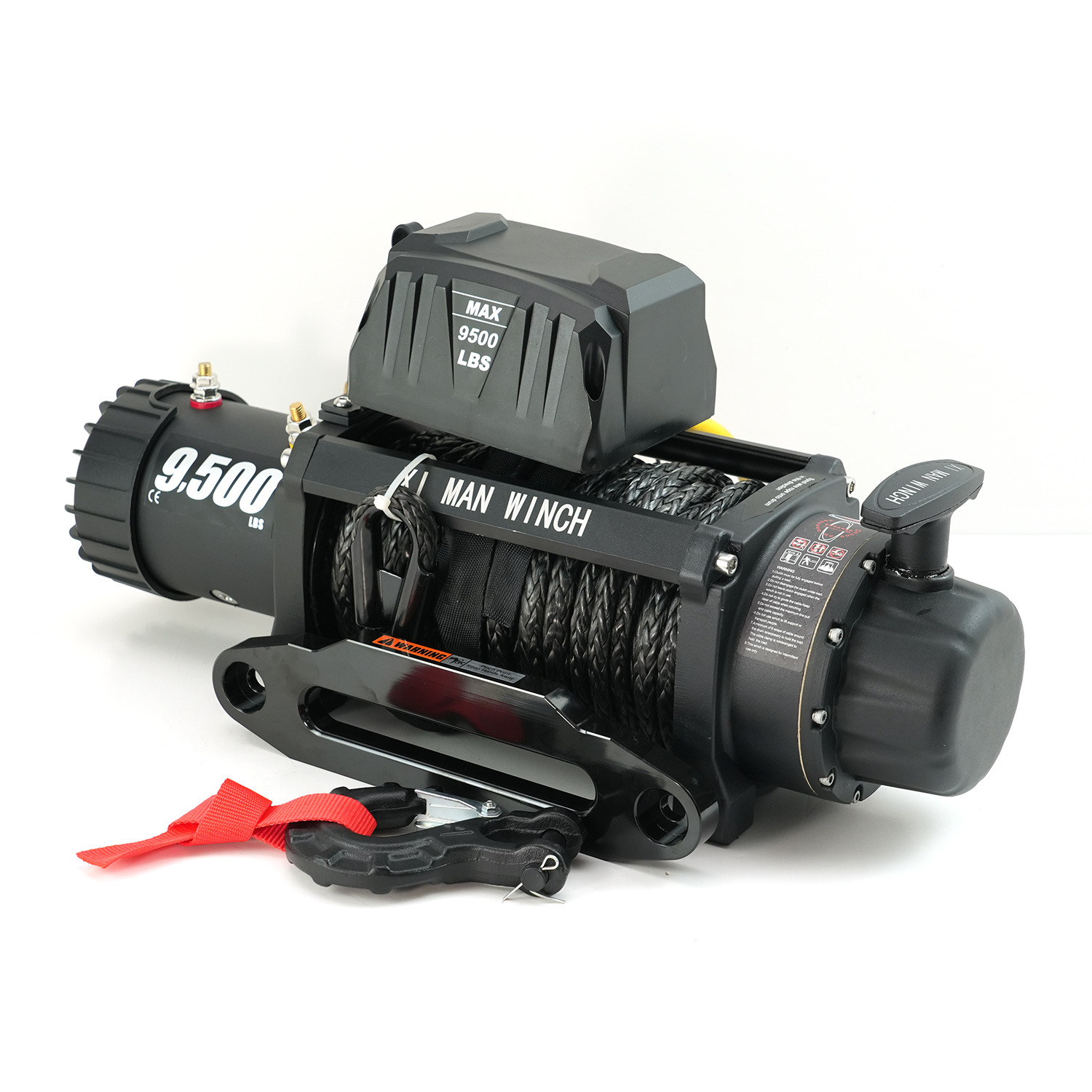

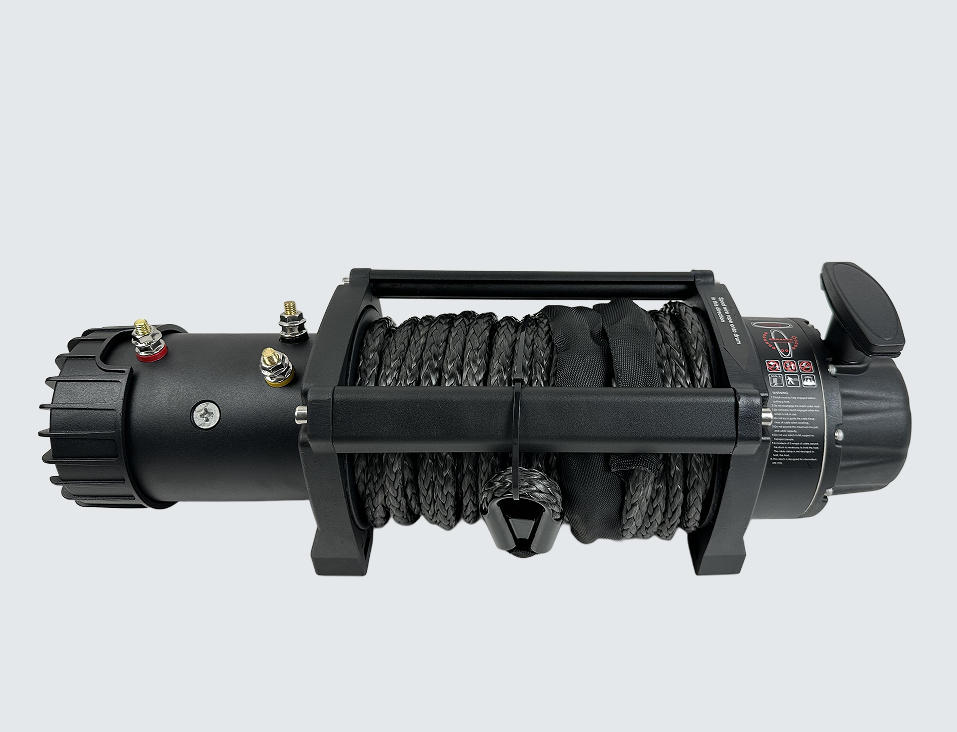

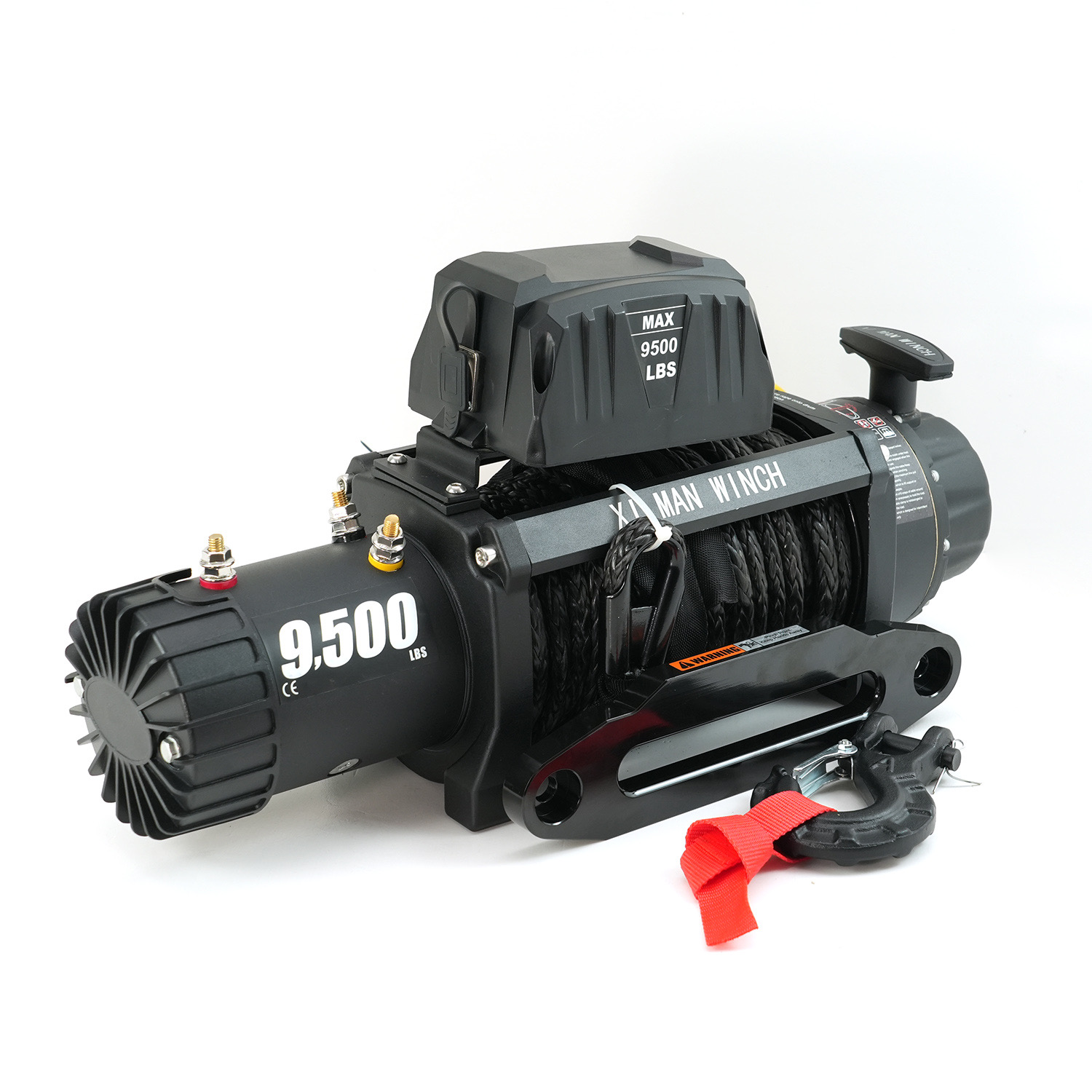

IP68 Powerful Electric Winch 9500lbs with Synthetic Rope

Compact and Popular winch design with powerful and reliable quality guarantee. Single pulling rate of 9500 lbs , Both wired and wireless remote controls, all new materials on this winch, 100% copper wires for battery leads and inside wires on motor, more than 12 months warranty!

Our  9500 lb winch model,which is ideal recovery winch for the beginners  who are offroad enthusiasts and start driving. Reliable and durable quality design makes users have fun, no quality troubles. Sealed Series -wound winch motor with fast speed. All steel gears with three gear carriages , 216:1 gear ratio & sealed gear housing. IP68 winch solenoid, 400 A for 9500lbs winch model. 100% copper wires for all battery leads, wired and wireless remote controls included. More than 13months warranty for all key parts like motor , gear box , wired and wireless remote controls.

9500 lbs Features and Specifications

Part Number : XM-9500SPN-SF

Single line rated pull9500lbs(4303kgs)
Motor5.4hp/4.1kw,series wound sealed
ControlWired remote  and Wireless remote controls
Gear train3 stage planetary Sealed  All steel gears
Gear reduction ratio216:1
BrakingAutomatic locking with motor shaft
Drum size Diameter 2.5"(63.5mm)×length9.6"(224mm)
Synthetic rope 33/100"(8.5mm)×80'(24.5m)
Remote control switchIncluded
Extra wireless remoteIncluded
BatteryRecommended:650CCA
Net weight28 kgs
Overall dimension
(length×width×height)
21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm)
Mounting bolt pattern10"×4.5"(254×114.3mm)

Line Speed And Amp Draw ( First Layer )

Line PulllbNO40006000800010000
kgLOAD1812271836244304
Line speedft/min38.514.112.610.77.90
m/min11.744.293.843.082.50
Motor  currentAmps78143201276353

Line Pull And Cable Capacity

Layer of cable
1234
Rated line pull per layerlb9500725061255150
kg4304328527752333
Length of cable on drumft16.539.664.285.40
m5.0312.7019.5726.00




shared:
Black or OEM
28kg
Plain brown box or Color box
