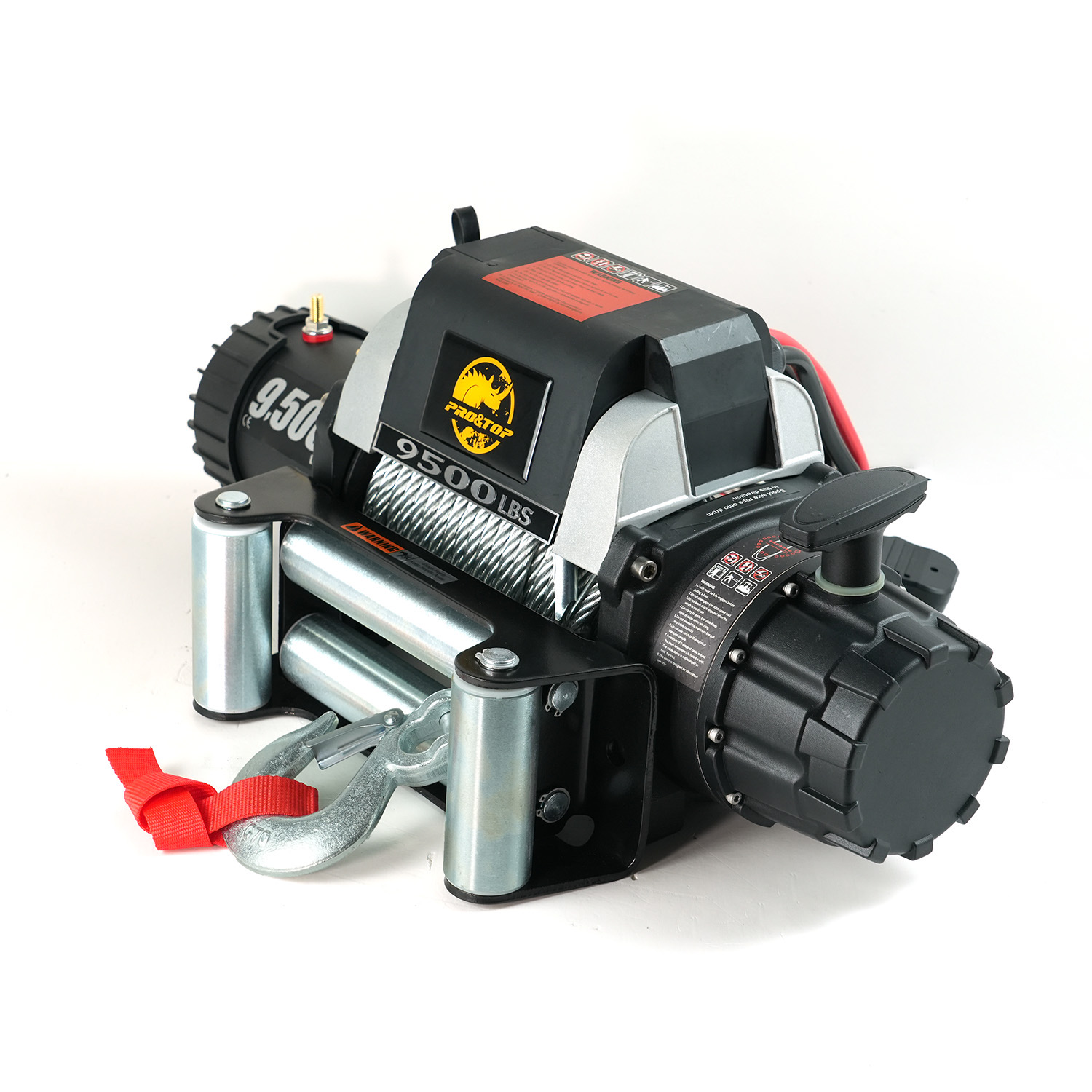

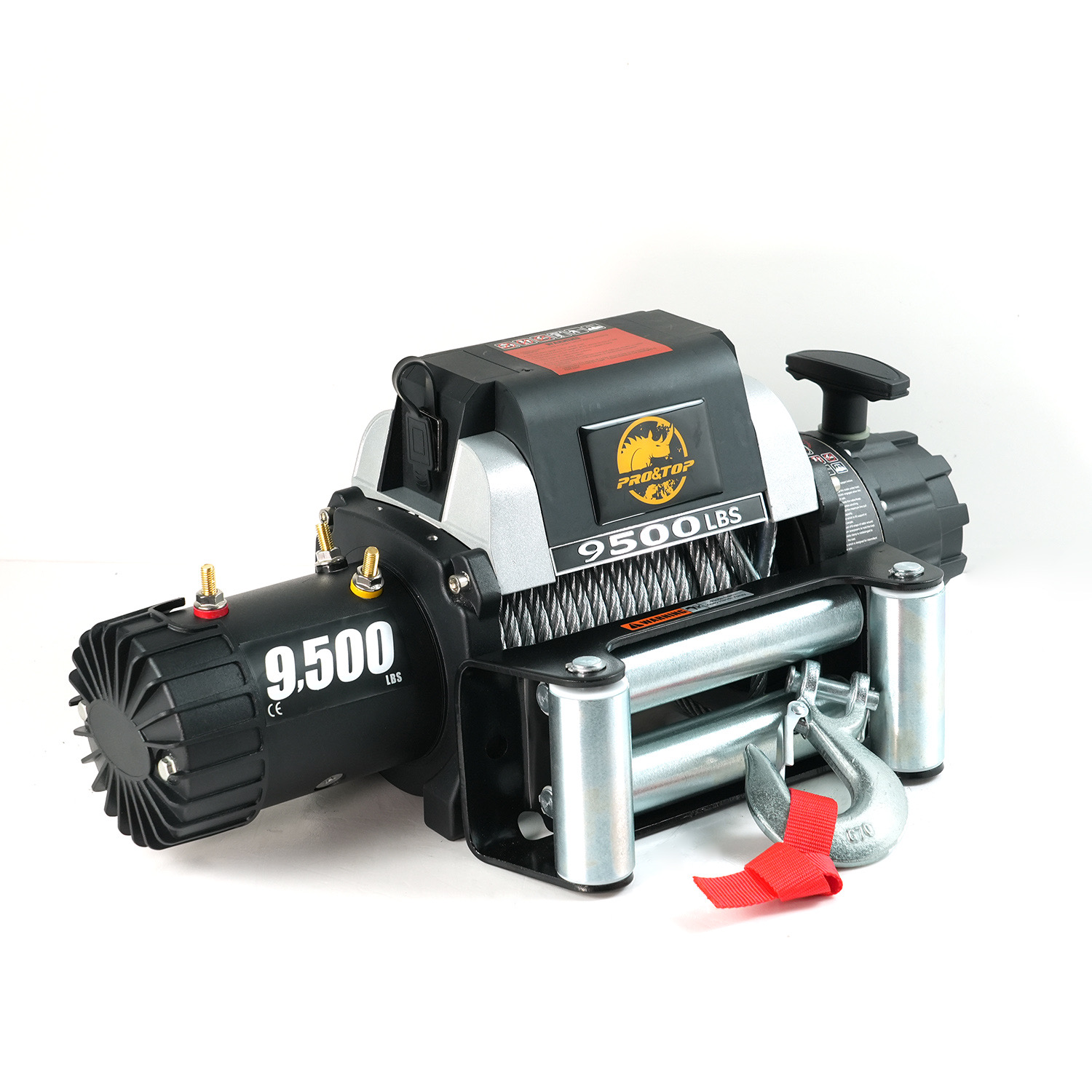

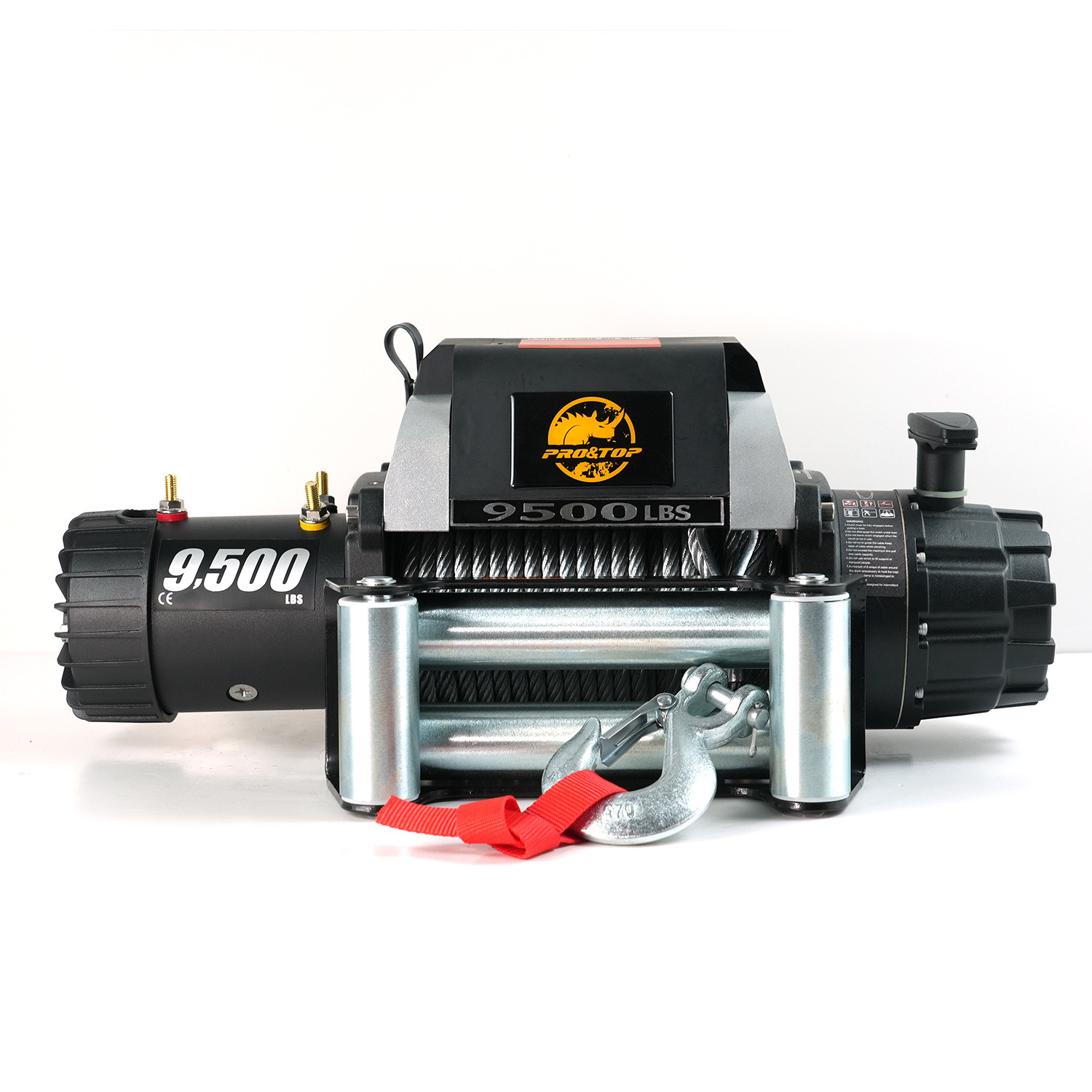

Waterproof Powerful Truck 4X4 Electric Winch 9500lbs Steel Cable

Power box and winch conbined design, all waterproof. Powerful pulling with durable quality. Fitting for installation on bullbar outside.

IP68 ultimate performance winch for 4x4 off road riders .

New unique surface -look & symmetrical design ,All aluminum cover for the latest winch model with all waterproof .Fast speed & high torque & big horsepower sealed series -wound motor sealed  . a big excellent-perfomance plastic control box design  .All steel gears with 1.5 modular ,three gear-carriages driventrain  with Gear ratio of 216: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature "Engage "and "Disengage" clutch run smoothly and quietly

High quality of  400 Amperes solenoid with waterproof ,1.8m- long battery leads with 100% pure copper wires inside.  3.7 meter long wired remote control and 25 meter radio-distance wireless remote controls as well. 3/8 forged winch hook with a strap. 8.5 x 24.5 m synthetic rope with aluminum fairlead. Box-protection packing to make a winch safe and no damages during shipment. It's worth having it for off road lovers! For more details, please contact us at any time.  Thanks

9500lbs Features and Specifications

Part Number :  XM-9500NF

Single line rated pull9500lbs(4303kgs)
Motor5.8hp/4.2kw,series wound sealed
ControlWired remote  and Wireless remote controls
Gear train3 stage planetary Sealed  All steel gears
Gear reduction ratio216:1
BrakingAutomatic load-holding brake
Drum size Diameter 2.5"(63.5mm)×length9.6"(224mm)
Cable 33/100"(8.5mm)×80'(24.5m) Steel wire
Remote control switchIncluded
Extra wireless remoteIncluded
BatteryRecommended:650CCA
Net weight36 kgs
Overall dimension
(length×width×height)		18.5"×5.25" ×9.23"(564×160×281.4mm)
Mounting bolt pattern10"×4.5"(254×114.3mm)

Pull, speed, amps

Line pull lbs(kgs)Line speed ft/min(m/min)Current (Amps)
0205.5(5.22)65
2000(907)17.1(4.34)125
4000(1818)122.5(3.1)179
6000(2727)105.6(2.68)224
8000(3636)90.5(2.3)265
9500(4318)84(2.13)310

Line pull and rope capacity in each layer

LayerRated line pull lbs(kgs)Total rope on drum ft(M)
19500(4318)16.3(5.0)
27700(3493)39.3(12.0)
36500(2954)65.6(20.0)
45610(2585)79(24.0)


shared：
More than 12 months
Black or OEM
Plain brown box or Color box
