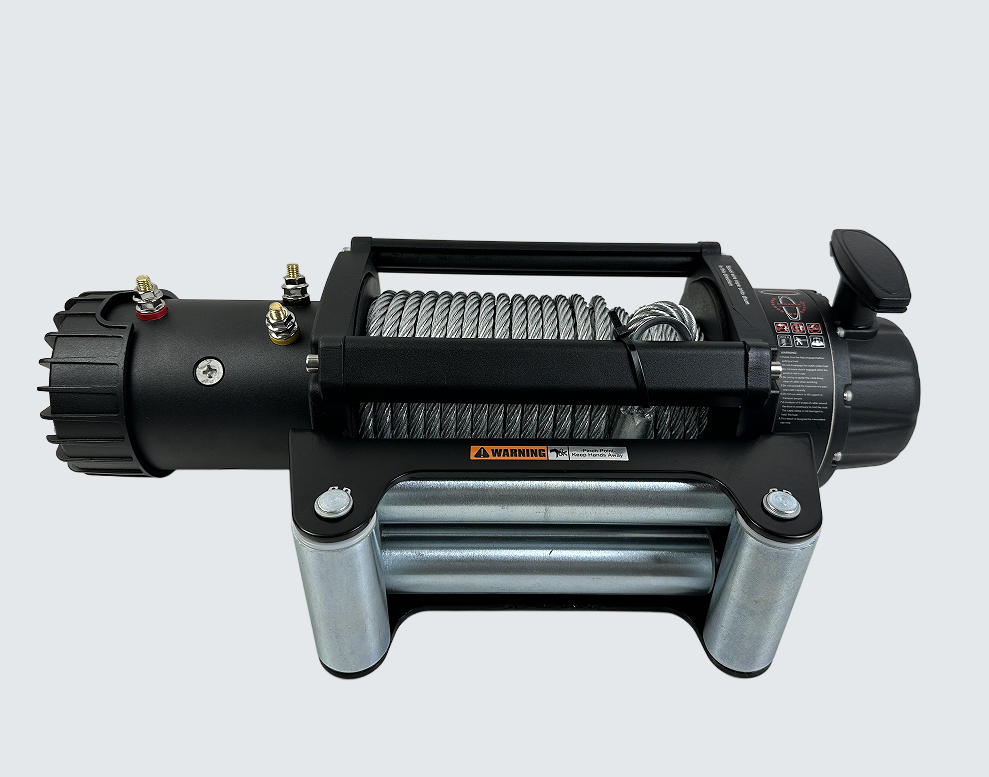

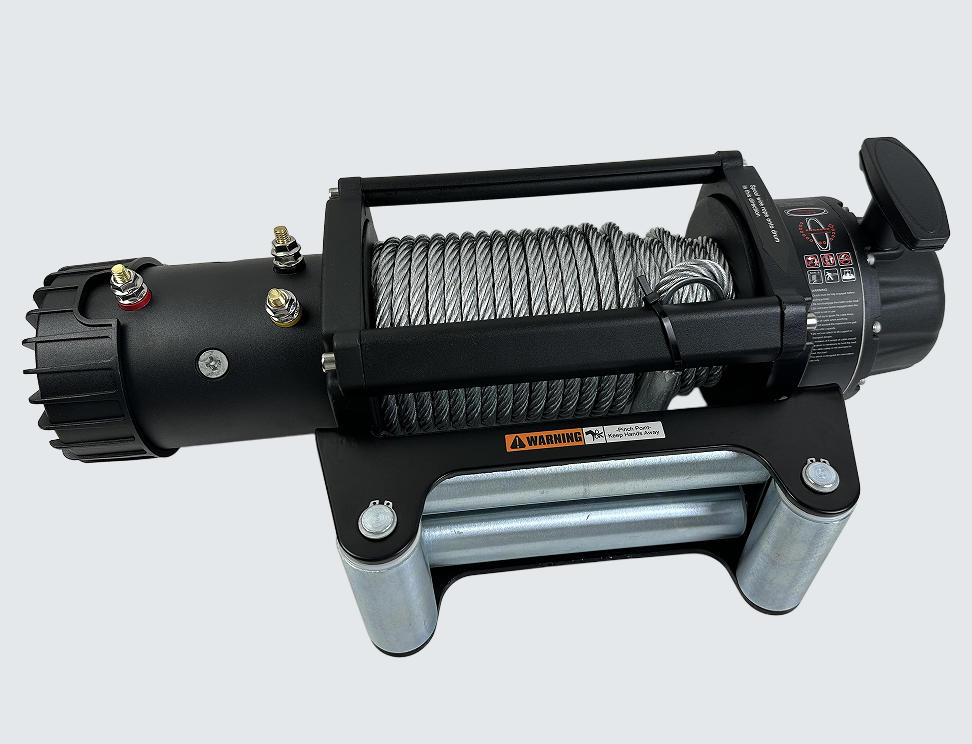

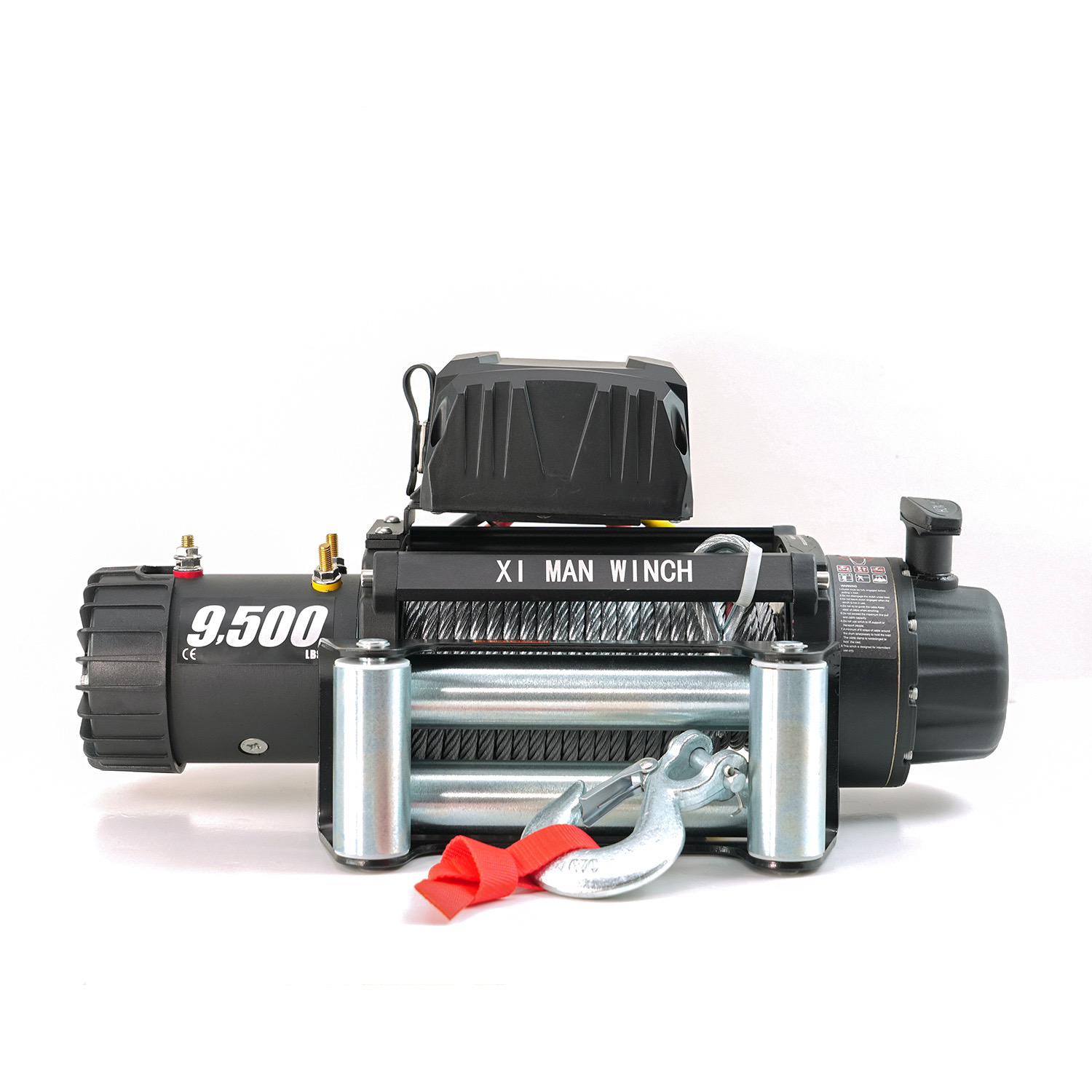

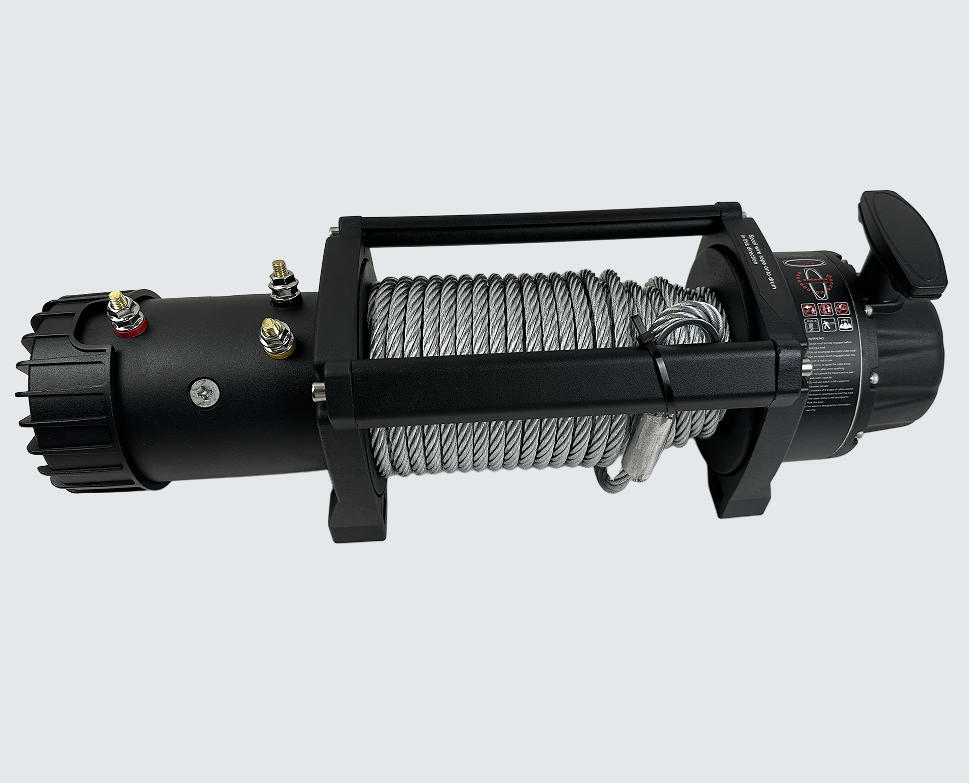

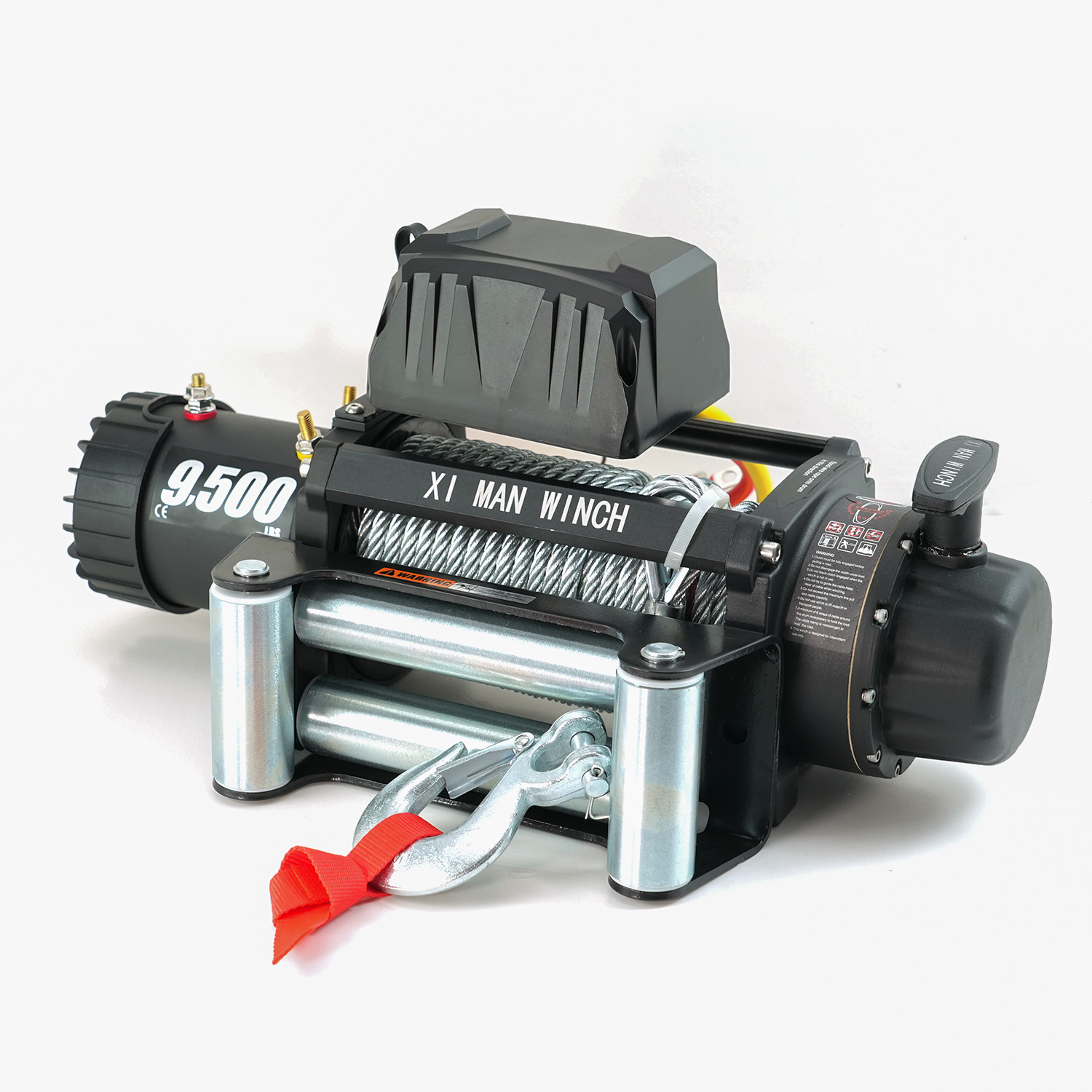

IP68 Powerful Electric Winch 9500 lbs

Compact and popular winch model design, which fits for light-weight 4x4 off-road vehicles. Not a big price!

Our  9500 lb winch model,which is an ideal recovery winch for the 4x4 off-road drivers  who are offroad enthusiasts and love off-road driving. Reliable and durable quality and popular design makes users have  fun,  Sealed Series -wound winch motor with fast speed. All steel gears with three gear carriages , 216:1 gear ratio & sealed gear housing. IP68 winch solenoid, 400 A for 9500lbs winch model. 100% copper wires for all battery leads, wired and wireless remote controls included. More than 13months warranty for all key parts like motor , gear box , wired and wireless remote controls. The front flat tie bar can be etched your Logo.

9500 lbs Features and Specifications :

Part Number :  XM -9500SPN-F

Single line rated pull9500lbs(4303kgs)
Motor5.4hp/4.1kw,series wound sealed
ControlWired remote  and Wireless remote controls
Gear train3 stage planetary Sealed  All steel gears
Gear reduction ratio216:1
BrakingAutomatic locking with motor shaft
Drum size Diameter 2.5"(63.5mm)×length9.6"(224mm)
Cable 33/100"(8.5mm)×80'(24.5m) steel wire
Remote control switchIncluded
Extra wireless remoteIncluded
BatteryRecommended:650CCA
Net weight35.80 kgs
Overall dimension
(length×width×height)		21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm)
Mounting bolt pattern10"×4.5"(254×114.3mm)

Line Speed And Amp Draw ( First Layer )

Line PulllbNO40006000800010000
kgLOAD1812271836244304
Line speedft/min38.514.112.610.77.90
m/min11.744.293.843.082.50
Motor  currentAmps78143201276353
Line Pull And Cable Capacity
Layer of cable
1234
Rated line pull per layerlb9500725061255150
kg4304328527752333
Length of cable on drumft16.539.664.285.40
m5.0312.7019.5726.00

shared：
Black or OEM
35.8kg
Plain brown box or Color box
