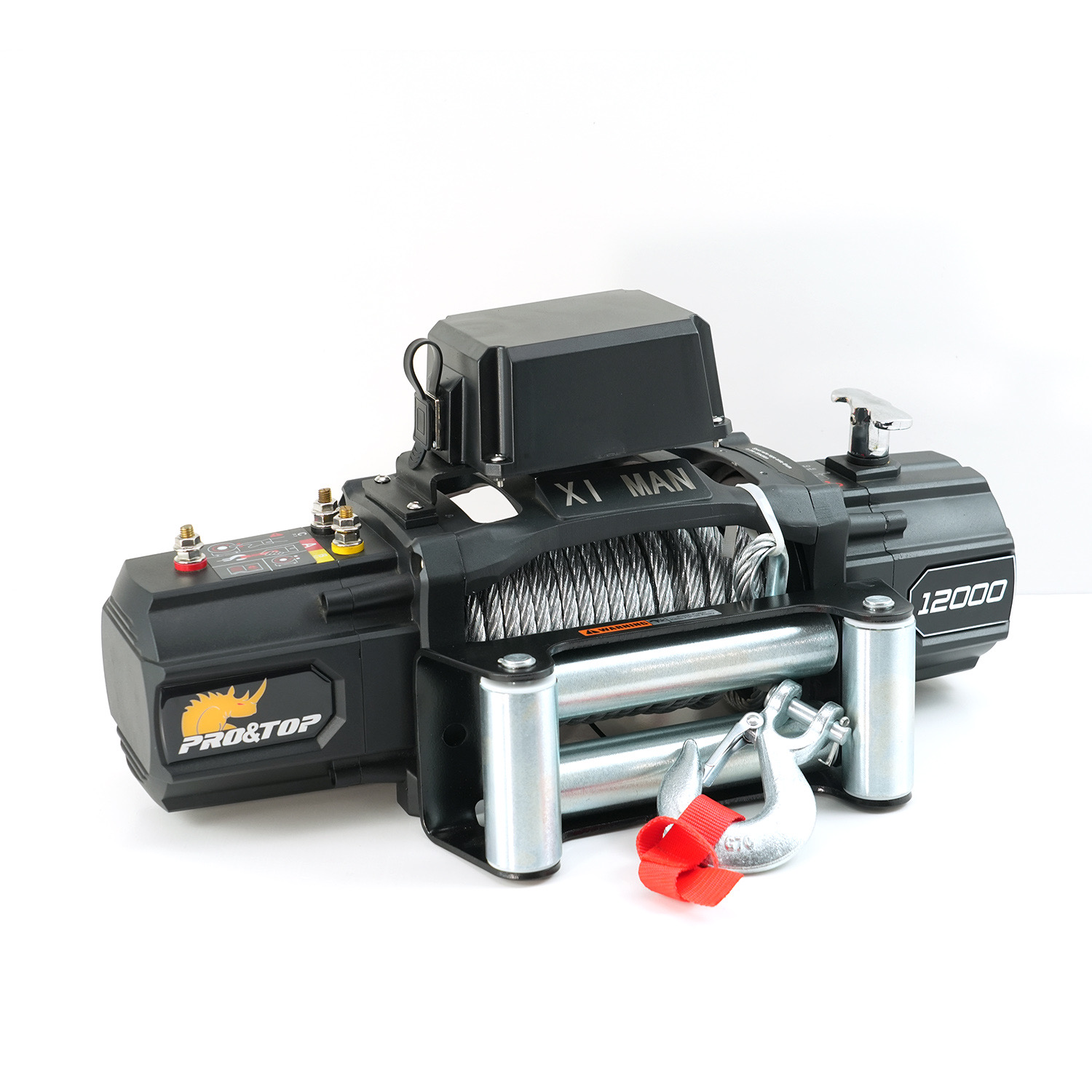

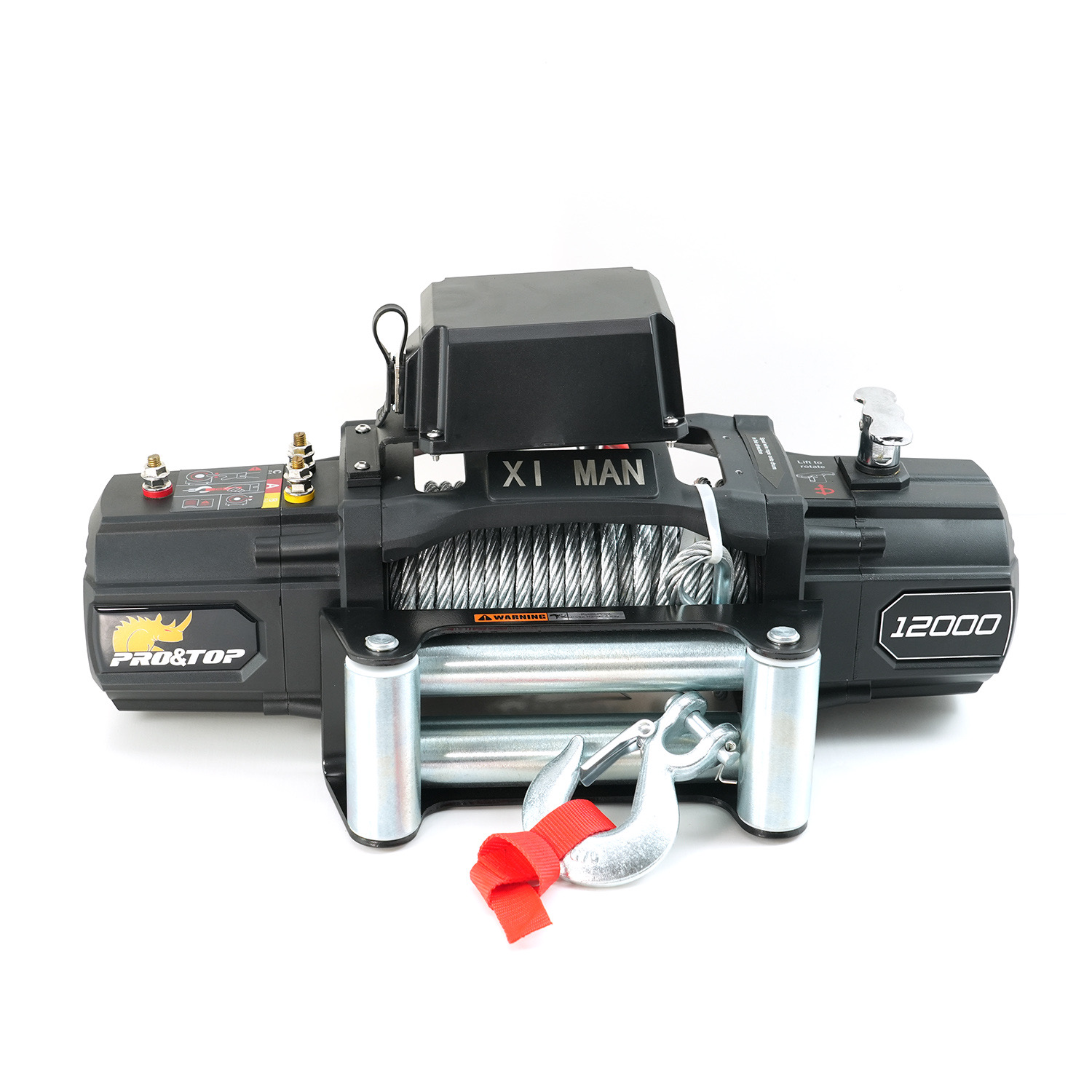

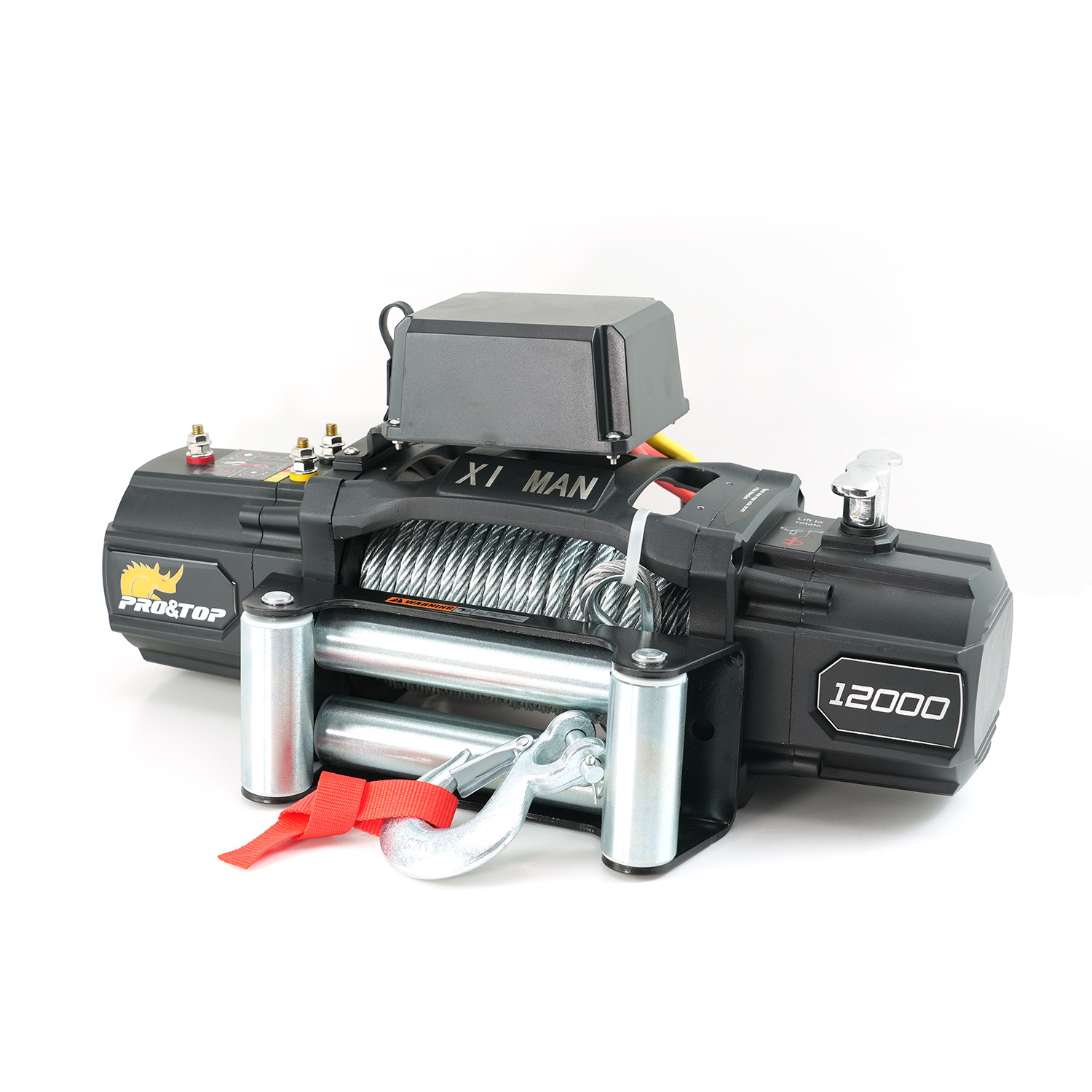

IP 68 Symmetrical Design Electric Winch 12000lbs with Steel Cable

IP68 Symmetrical Design Electric Winch. All waterproof and powerful pulling, Ultimately -performed and high quality. More than 12 months Warranty

IP68 ultimate performance winch for 4x4 off road riders . Our own design and Patent!!!

New unique surface -look & symmetrical design ,All aluminum cover for the latest winch model with all waterproof .Fast speed & high torque & big horsepower sealed series -wound motor . Extra spare part of control box design .All steel gears sealed with 1.5 modular .Gear ratio : 252: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature "Engage "and "Disengage" clutch run smoothly and quietly

Reliable 450 Amperes solenoid, can be removable power control box ,Extra an on-off switch included. Both wired and wireless remote controls. It's worth having it for off road lovers

OEM or Extra requirements on this model, please contact us for further discussion.

12000lbs features and specifications

Part Number:  XM-12000-NP

Single line rated pull12000lbs(5454kgs)
Motor6.5hp/4.8kw,series wound sealed
ControlWired remote control and wireless remote control
Gear train3 stage planetary sealed all steel gears
Gear reduction ratio252:1
BrakingAutomatic load-holding brake
Drum size Diameter 2.5"(63.5mm)×length9.6"(224mm)
Cable9.5mm x 24.5 steel cable
Remote control switchIncluded
Extra wireless remoteIncluded
BatteryRecommended:650CCA
Net weight38  kgs
Overall dimension
(length×width×height)		18.5"×5.25" ×9.23"(564×160×281.4mm)
Mounting bolt pattern10"×4.5"(254×114.3mm)

Pull, speed, amps

Line pull lbs(kgs)Line speed ft/min(m/min)Current (Amps)
0905.5(5.22)60
2000(907)171(4.34)115
4000(1818)122.1(3.1)170
6000(2727)105.6(2.68)215
8000(3636)90.5(2.3)280
10000(4545)63(1.6)320
12000(5454)55(1.39)390

Line pull and rope capacity in each layer

LayerRated line pull lbs(kgs)Total rope on drum ft(M)
112000(5454)16.3(5.0)
29210(4186)37(11.2)
38030(3642)61(18.6)
46894(3127)79(24.0)




shared：
Unique design
Black or OEM
Plain brown box or Color box
