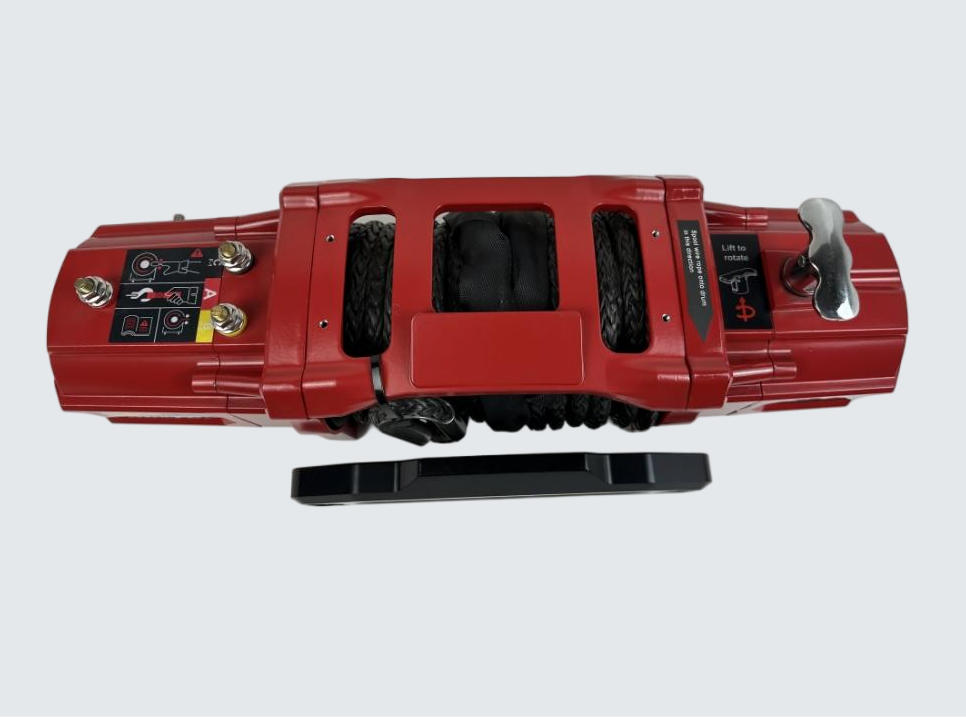

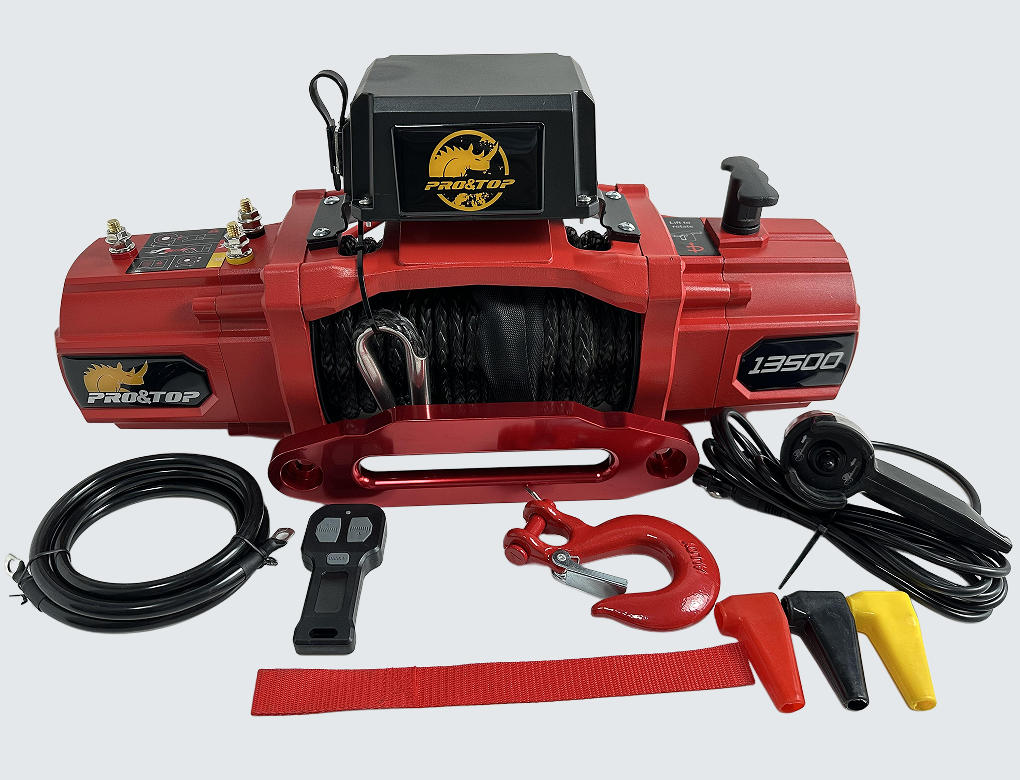

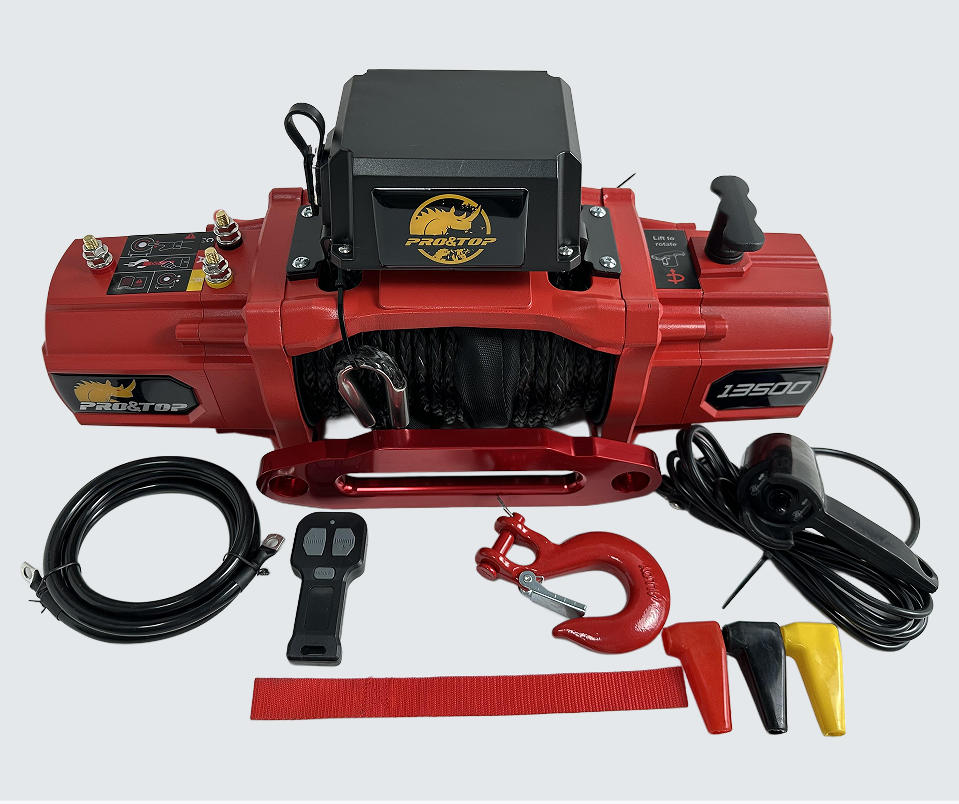

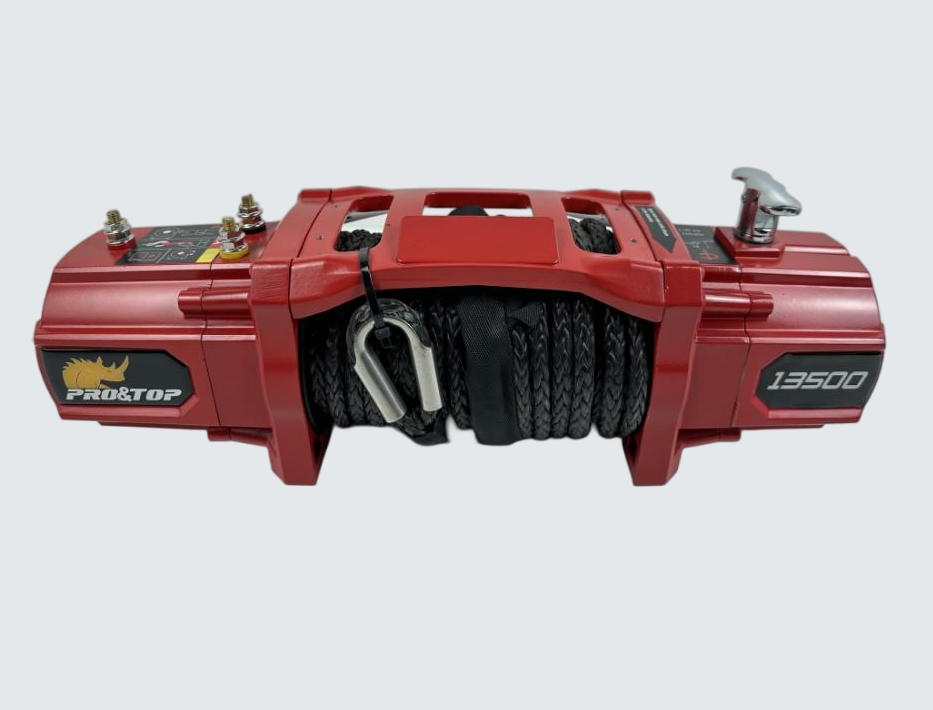

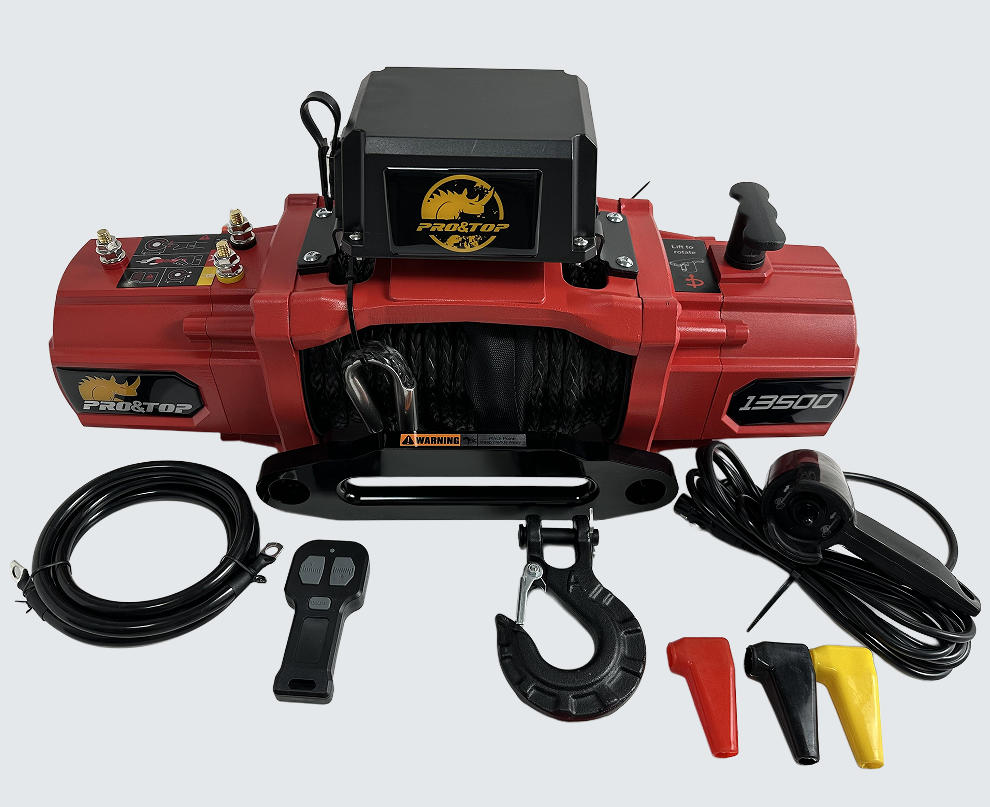

IP68 Premium Symmetrical Design Electric Winch 13500lbs

Powerful Symmetrical Design Winch, all waterproof with strong pulling. High quality with ultimate performance. More than 12 months warranty!

IP68 ultimate performance winch for 4x4 off road riders .

New unique surface -look & symmetrical design ,All aluminum cover for the latest winch model with all waterproof .Fast speed & high torque & big horsepower sealed series -wound motor . Extra spare part of control box design .All steel gears sealed with 1.5 modular .Gear ratio : 252: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature "Engage "and "Disengage" clutch run smoothly and quietly

Reliable 500 Amperes solenoid, can be removable power control box ,Extra an on-off switch included. Both wired and wireless remote controls. It's worth having it for off road lovers

OEM or Extra requirements on this model, please contact us for further discussion.

13500lbs features and specifications

Part Number:  XM-13500-P

Single line rated pull13500lbs(6116kgs)
Motor6.6hp/50kw,series wound sealed
ControlWired remote control and wireless remote control
Gear train3 stage planetary sealed all steel gears
Gear reduction ratio252:1
BrakingAutomatic load-holding brake
Drum size Diameter 2.5"(63.5mm)×length9.6"(224mm)
Cable10mm ×  25m  Synthetic rope
Remote control switchIncluded
Extra wireless remoteIncluded
BatteryRecommended:650CCA
Net weight29kgs
Overall dimension
(length×width×height)		18.5"×5.25" ×9.23"(564×160×281.4mm)
Mounting bolt pattern10"×4.5"(254×114.3mm)

Pull, speed, amps

Line pull lbs(kgs)Line speed ft/min(m/min)Current (Amps)
021.3(6.5)65
2000(907)14.6(4.5)120
4000(1818)11.1(3.4)165
6000(2727)9.2(2.8)210
8000(3636)7.87(2.4)270
10000(4545)6.5(2.0)360
13500(6116)4.43(1.35)450

Line pull and rope capacity in each layer

LayerRated line pull lbs(kgs)Total rope on drum ft(M)
113500(6116)16.3(5.0)
210600(4818)37(11.2)
38961(4073)61(18.6)
47755(3525)79(24.0)

shared：
Red and OEM Color
29kg
Plain brown box or Color box
