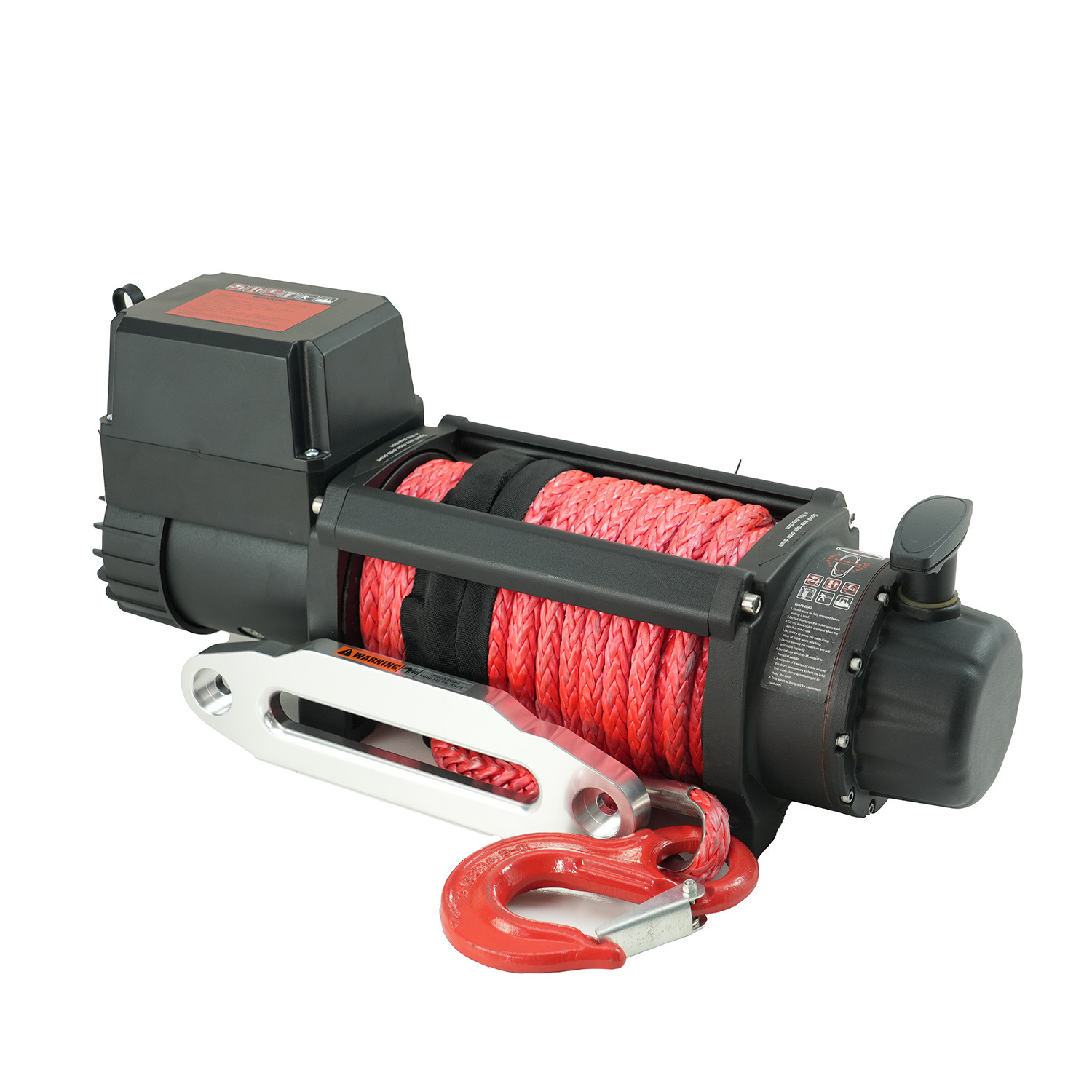

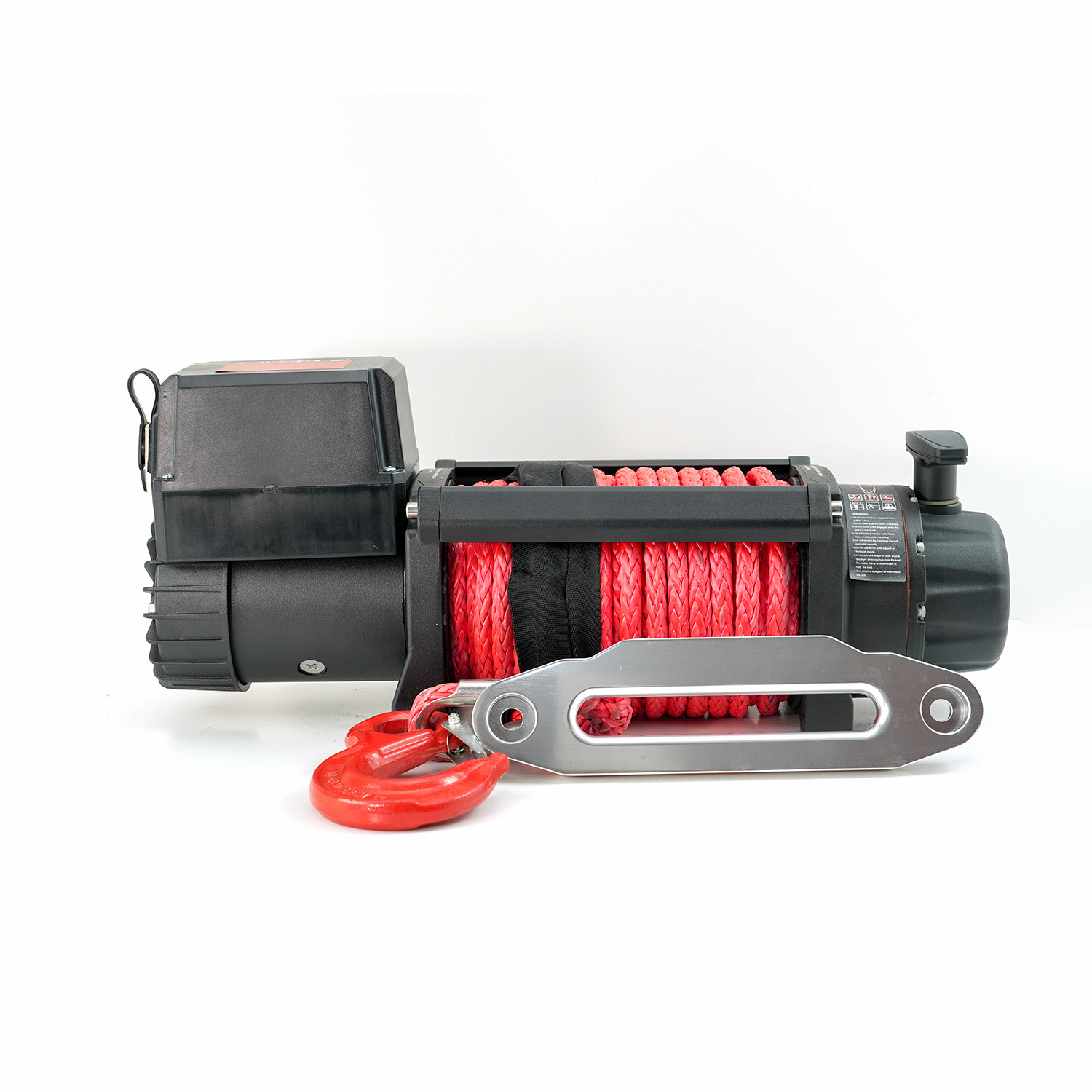

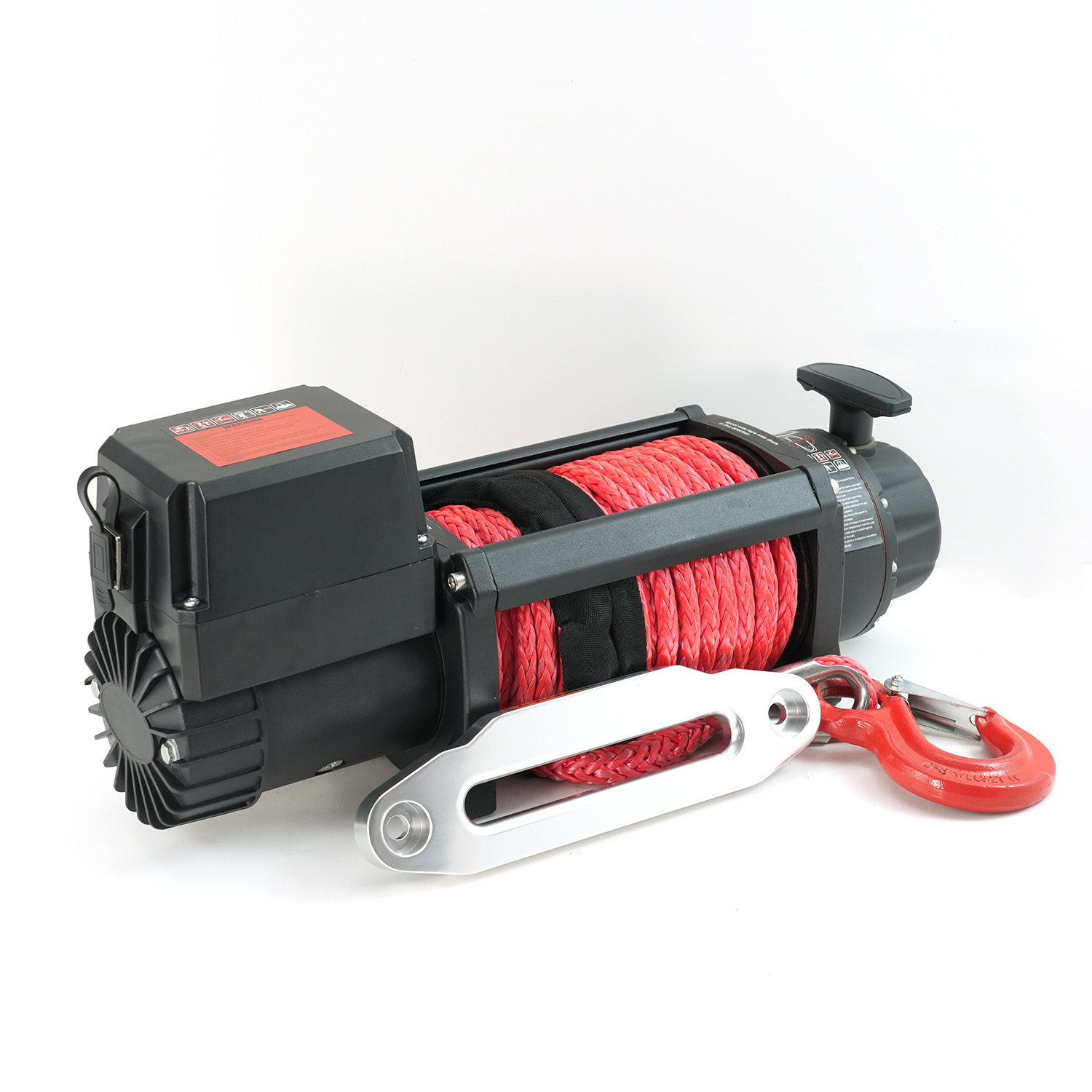

4X4 off-Road Driving Electric Winch 12000lbs

Popular style design, easy-installation , simple operation, High quality with competitive price, more than 12 months warranty

Powerful 4x4 truck winch designs to customers who love off road driving. Power control box pre-seated above motor side, IP68 solenoid.inside . , Sliding ring gear for freespooling by handle-turn ,three gears drive train with 216: 1 gear reduction ration .Appropriate speed line with safe operation .Both wired cord remote and wireless remote control.  High standards synthetic rope with pre-connected forged hook .Reliable performance and durable make your driving happily . The economic price is more advantage that you choose it !

Features and Specifications :

Part Number:          XM-12000NP-F

Single line rated pull12000lbs(5436kgs)
Motor6.0hp/4.5kw,series wound sealed
ControlWired remote  and Wireless remote controls
Gear train3 stage planetary Sealed  All steel gears
Gear reduction ratio216:1
BrakingAutomatic locking with motor shaft
Drum size Diameter 2.5"(63.5mm)×length9.6"(224mm)
Synthetic rope 9.5mm×82'02"(25m)
Remote control switchIncluded
Extra wireless remoteIncluded
BatteryRecommended:650CCA
Net weight28.5 kgs
Overall dimension
(length×width×height)		21.3" x 10.3" x 6.3" (540mm x 260mm x 160mm)
Mounting bolt pattern10"×4.5"(254×114.3mm)

Line Speed And Amp Draw ( First Layer

Line PulllbNO4000600080001000012000
kgLOAD18122718362443045436
Line speedft/
min		37.3214.2212.7210.268.556.45
m/
min		12.444.744.243.422.852.15
Motor  currentAmps72136198266310360

Line Pull And Cable Capacit

Layer of cable
1234
Rated line pull per layerlb12500992782507045
kg566544973737   3191
Length of cable on drumft17.838.264.282.02
m5.9312.7319.5725.00














shared：
More than 12 months
Black or OEM
Plain brown box or Color box
