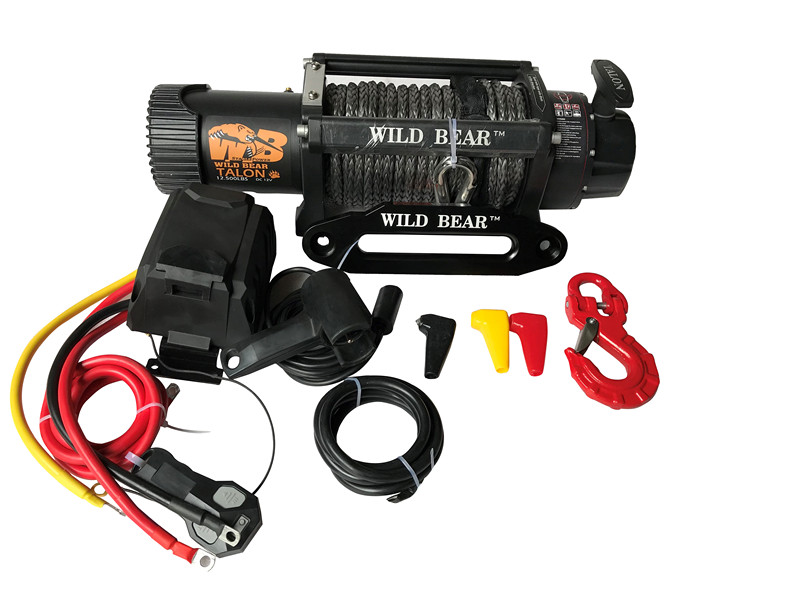

Real pulling of 10500 lb4x4 truck winch
Stylish design with heavy duty 10,500 lb winch . Powerful fast speed series would motor sealed ,mechanical design brake . sealed completed gear box with all steel gears , 216.:1 gear ratio .
Features and Specifications :
PN:XM-TE906
Performance: 12 V or 24 VDC
Single line rated pull: 10,500lbs ( 4757kg)
Motor:6.0hp/4.5kw series –woundSealed
Braking action: Automatic locking with motor
Clutch:Flip up and downSliding ring gear
Gear train : 3 –stage planetary
Gear ratio:216: 1
Remote Switch: 12ft ,wireless remote control integrated with Wired remote control
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 Gauge 72”(1.83m)
Fairlead: 4-way roller fairlead
Steel cable: Ф9.5 x 88 ft (Ф9.5 x 27 m )
Weight: 82 pound(37kg )
Overall dimension:21.3” x 8.6” x 6.3” (550mm x 220mm x 160mm)
Mounting bolt pattern:10” x 4.5” (254mm x 114.3mm)
Line Speed And Amp Draw ( First Layer )
Line Pull | lb | NO | 4000 | 6000 | 8000 | 10500 | ||
kg | LOAD | 1812 | 2718 | 3624 | 4757 | |||
Line speed | ft/ min | 22.8 | 11.8 | 10.2 | 8.5 | 7.0 | ||
m/ min | 6.95 | 3.6 | 3.1 | 2.6 | 2.13 | |||
Motor current | Amps | 78 | 166 | 207 | 248 | 310 |
Line Pull And Cable Capacity
Layer of cable | 1 | 2 | 3 | 4 | |
Rated line pull per layer | lb | 10500 | 8927 | 7250 | 5045 |
kg | 4757 | 4497 | 3737 | 3191 | |
Length of cable on drum | ft | 17.8 | 38.2 | 64.2 | 72 |
m | 5.93 | 12.73 | 19.57 | 24.00 |
